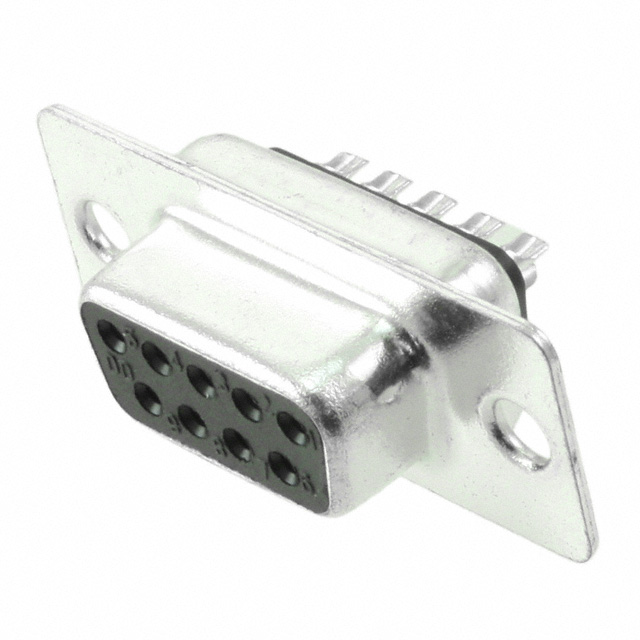

8R09-N001
Or copy the link below:
- Mfr.Part #
- 8R09-N001
- Manufacturer
- 3M
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 9POS PNL MNT
- Stock
- 8,804
- In Stock ：
- 8,804
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- 3M
- Product Category :
- D-Sub Connector Assemblies
- Length :
- 30.8mm
- Contact Type :
- Signal
- Material Flammability Rating :
- UL94 V-0
- Number of Contacts :
- 9
- Current Rating (Amps) :
- 3A
- Contact Finish Thickness :
- Flash
- Mounting Type :
- Panel Mount
- Shell Material, Finish :
- Steel
- Housing Material :
- Thermoplastic
- Termination :
- Solder Cup
- Dielectric Material :
- Thermoplastic
- Min Operating Temperature :
- -55°C
- Operating Temperature :
- -55°C~105°C
- Connector Style :
- D-Sub
- Shell Size, Connector Layout :
- 1 DE E
- Voltage - Rated :
- 250V
- Mount :
- Panel
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Gender :
- Receptacle
- Published :
- 2011
- Number of Positions :
- 9
- Connector Type :
- Receptacle, Female Sockets
- Number of Rows :
- 2
- Current Rating :
- 3A
- Contact Plating :
- Gold, Nickel
- Packaging :
- Tray
- Flange Feature :
- Housing/Shell (Unthreaded)
- Series :
- 8000
- RoHS Status :
- RoHS Compliant
- Pitch :
- 2.77mm
- Max Operating Temperature :
- 105°C
- Body Material :
- Stainless Steel
- Orientation :
- Straight
- Contact Finish :
- Gold
- Depth :
- 12.5mm
- Contact Material :
- COPPER ALLOY
- Datasheets
- 8R09-N001
8R09-N001 Documents
8000 Series D-Sub Receptacle, Female Sockets 9-Position Receptacle Signal Solder Cup 1 DE E Panel Mount Copper Alloy Gold Steel
8R09-N001 Overview
This product is packaged in a Receptacle, Female Sockets box.There is a Panel Mount mounting type for the device.This product is packaged in a case marked Tray.Product number 8000 belongs to the 8000 Series.Whenever the temperature is below 105°C, it's best.There is a minimum temperature requirement of [0°C] for this device.There is a Panel mount on the part.This device operates at a temperature of -55°C~105°C.
8R09-N001 Features
8000 series
8R09-N001 Applications
There are a lot of 3M
8R09-N001 D-Sub Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
