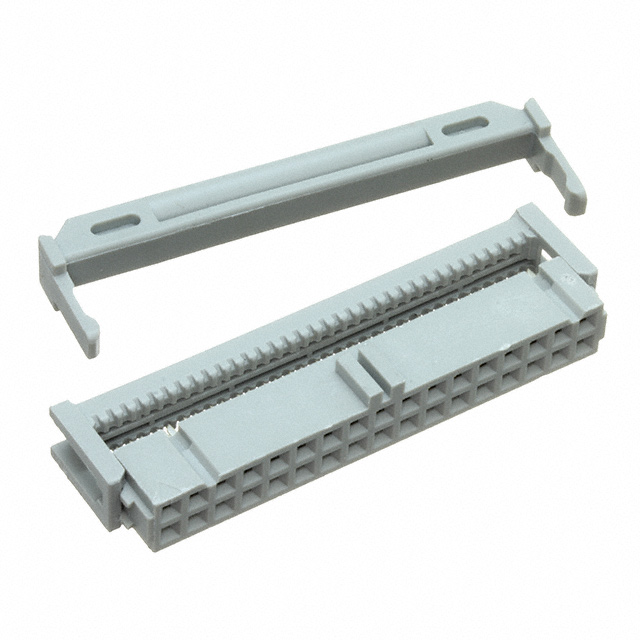

89134-0103

Manufacturer :

3M

Product Category :

Free Hanging, Panel Mount

Feature :

Feed Through, Polarizing Key, Strain Relief

Contact Type :

Female Socket

Depth :

7.6mm

Wire/Cable Type :

Ribbon

Contact Finish :

Gold

Flammability Rating :

UL94 V-0

REACH SVHC :

Unknown

Row Spacing :

0.100 (2.54mm)

Max Current Rating :

1.25A

RoHS Status :

ROHS3 Compliant

Wire Type :

Ribbon Cable

Color :

Gray

Cable Termination :

IDC

Sensing Distance :

3 m

Published :

2007

Mount :

Free Hanging

Wire Gauge :

26-28 AWG

Contact Gender :

FEMALE

Wire Gauge (Min) :

28 AWG

Pitch :

0.100 2.54mm

Current Rating :

1A

Number of Positions :

34

Number of Rows :

2

Termination :

IDC

Weight :

4.082331kg

Insulation Material :

Polyester

Mounting Type :

Free Hanging (In-Line)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Cable Length :

3m

Contact Finish Thickness :

30.0μin 0.76μm

Factory Lead Time :

6 Weeks

Housing Material :

Polybutylene

Series :

891

Contact Plating :

Gold

Housing Color :

Grey

Length :

42.7mm

Lead Length :

3m

Wire Gauge (Max) :

26 AWG

Min Operating Temperature :

-55°C

Orientation :

RIGHT ANGLE

Contact Material :

Bronze

Gender :

Receptacle

Packaging :

Bulk

Max Operating Temperature :

105°C

Approval Agency :

UL

Connector Type :

Receptacle

Number of Contacts :

34
