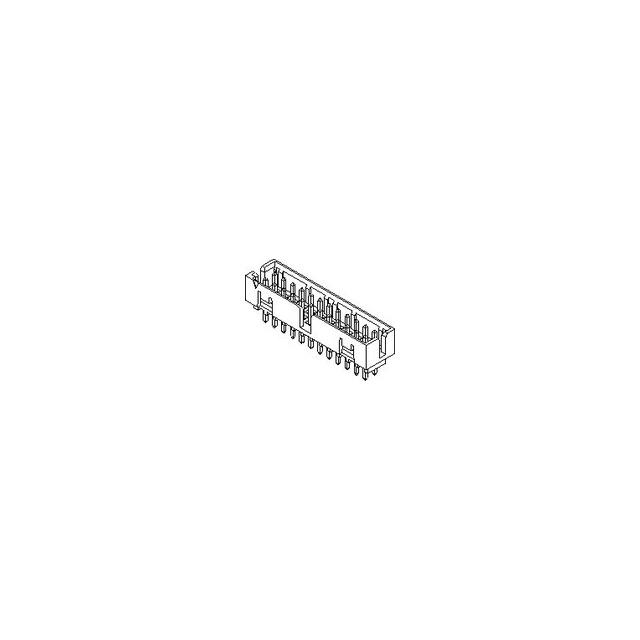

87831-3020

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Reliability :

COMMERCIAL

Pbfree Code :

yes

Termination Method :

Solder

Housing Material :

Nylon 4/6

Mounting :

Through Hole

Polarization Key :

ENDS

Type :

Shrouded Header

Flammability Rating :

UL 94 V-0

PCB Contact Pattern :

RECTANGULAR

Contact Material :

Phosphor Bronze

Product :

Headers

Operating Temp Range :

-55C to 105C

Product Height (mm) :

6.4(mm)

Series :

Milli-Grid

RoHS :

Details

Product Category :

Headers and Wire Housings

Plating Thickness :

15u inch

Pitch :

2.0000 mm

Contact Type :

-

Connector Type :

BOARD CONNECTOR

Rated Current (Signal) :

2 A

Reach Compliance Code :

Compliant

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Product Depth (mm) :

6.3(mm)

Contact Resistance Max :

40(mohm)

Filter Feature :

No

MIL Conformance :

No

Mounting Type :

Through Hole

Voltage Rating :

125 V

Durability :

100 Cycles

Number of Contact Rows :

2

Accessory Type :

-

Insulation Resistance :

1000000000 Ω

Application :

Signal, Wire-to-Board

Mounting Angle :

Straight

Mounting Option 1 :

LOCKING MECH

Mating Contact Pitch :

0.079 inch

Option :

GENERAL PURPOSE

Manufacturer :

Molex

Insulator Color :

Black

Mounting Style :

Through Hole

Contact Plating :

Gold

PCB Contact Row Spacing :

2.0066 mm

UL Flammability Code :

94V-0

Total Number of Contacts :

30

Body/Shell Style :

Receptacle

Number of Contacts :

30(POS)

Dielectric Withstanding Voltage :

1000VAC V

Row Spacing :

2 mm

Packaging :

Tube

Current Rating :

2.0A

Current Rating (Max) :

2/Contact(A)

Terminal Pitch :

2 mm

Product Length :

32.65 mm

Housing Color :

Black

Pitch (mm) :

2(mm)

Body Orientation :

Straight

Contact Resistance :

30 mΩ

Tradename :

Milli-Grid

Subcategory :

Headers and Wire Housings

Number Of PCB Rows :

2

Mating Post Length :

3.6 mm

Base/Housing Material :

NYLON 46

Additional Feature :

SHROUDED

Connector System :

Wire to Board

Contact Pattern :

RECTANGULAR

Terminal Length :

0.098 inch

Brand :

Molex

Minimum Operating Temperature :

- 55 C

Termination Type :

Solder

Number of Rows :

2

Gender :

Header

Mating Contact Row Spacing :

0.079 inch

Product Length (mm) :

32.65(mm)

Contact Gender :

Pin (Male)

IEC Conformance :

No

Voltage Rating Max :

125V

Number of Positions :

30 Position

Body Depth :

0.252 inch

Termination Style :

Solder Pin

Operating Temperature :

-55 to 105 °C

Contact Style :

SQ PIN-SKT

Reference Standard :

UL, CSA

Maximum Operating Temperature :

+ 105 C

Body Breadth :

0.248 inch

DIN Conformance :

No

Product Type :

Headers and Wire Housings

Factory Lead Time :

14 Weeks

Mixed Contacts :

No
