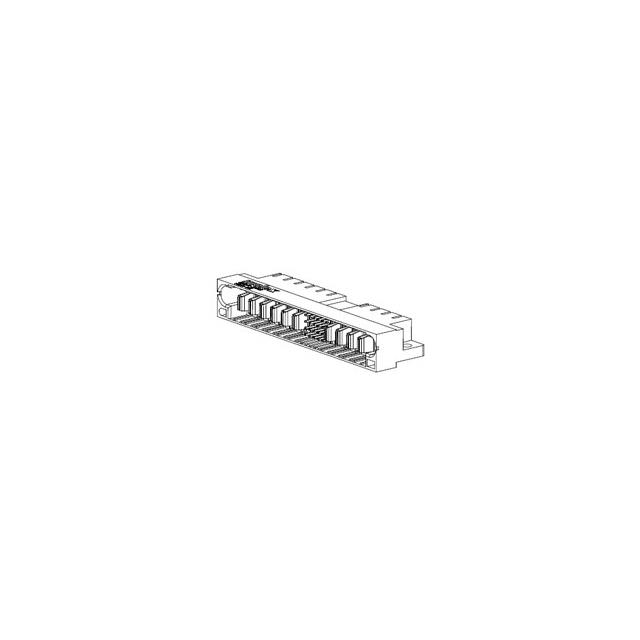

87631-3013

Manufacturer :

Molex

Product Category :

Unclassified

Option :

GENERAL PURPOSE

Packaging :

Tray

Factory Lead Time :

8 Weeks

Filter Feature :

No

MIL Conformance :

No

Product Length (mm) :

69.84(mm)

Body Orientation :

RIGHT ANGLE

Connector Type :

RECTANGULAR POWER CONNECTOR

Mixed Contacts :

yes

Product Height (mm) :

14.58(mm)

Type :

Power

Termination Type :

Solder

Product Status :

Active

IEC Conformance :

No

Contact Material :

COPPER ALLOY

Number of Ports :

1(Port)

Voltage Rating Max :

250VDC

Product Diameter (mm) :

Not Required(mm)

Mounting Type :

BOARD AND PANEL

DIN Conformance :

No

Contact Gender :

Male

Package :

Box

Pbfree Code :

yes

Contact Plating :

Gold Over Nickel

UL Flammability Code :

94V-0

Operating Temperature Max Deg. C :

105C

Number of Contacts :

6Power/24Signal(POS)

Shell Material :

GLASS FILLED LIQUID CRYSTAL POLYMER

Operating Temp Range :

-20C to 105C

Total Number of Contacts :

30

Reach Compliance Code :

Unknown

Operating Temperature Min Deg. C :

-20C

Empty Shell :

No

Product Depth (mm) :

23.62(mm)

Series :

*

Manufacturer :

Molex

Termination Method :

Solder

Number of Terminals :

72

Gender :

HDR

Current Rating (Max) :

(30/2.5)/CONTACT(A)

Mounting Style :

Through Hole
