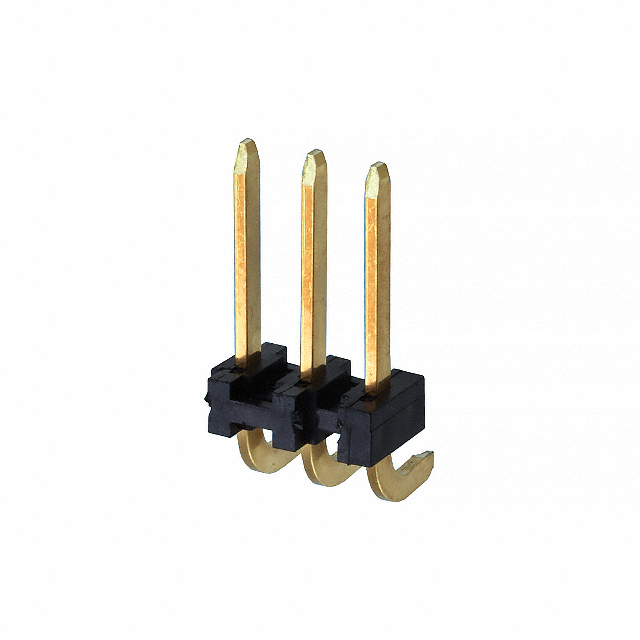

87258-3

Share

Or copy the link below:

Mfr.Part #
87258-3
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN HEADER R/A 3POS 3.96MM
Stock
12
In Stock :
12

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Male Pins
Insulation Height :
0.250 6.35mm
Contact Shape :
RECTANGULAR
Mixed Contacts :
No
Connector Type :
Header
Contact Current Rating :
5A
Published :
2008
Number of Positions :
3
Depth :
19.2mm
Number of Rows :
1
Material Flammability Rating :
UL94 V-0
Reliability :
COMMERCIAL
Durability :
75 Cycles
Pbfree Code :
yes
Approval Agency :
UL
Style :
Board to Board or Cable
Orientation :
RIGHT ANGLE
Keyed :
yes
Contact Material :
Brass
Contact Finish Thickness - Mating :
15.0μin 0.38μm
ECCN Code :
EAR99
Lead Length :
6.985mm
Contact Gender :
Male
DIN Conformance :
No
Flammability Rating :
UL94 V-0
Termination :
Solder
Filter Feature :
No
PCB Mounting Orientation :
RIGHT ANGLE
Rated Current (Signal) :
5A
Series :
AMPMODU Mod I
Number Of PCB Rows :
1
Contact Finish - Mating :
Gold
Housing Color :
Black
Fastening Type :
Push-Pull
Pitch - Mating :
0.156 3.96mm
IEC Conformance :
No
Contact Finish Thickness - Post :
15.0μin 0.38μm
Mounting Type :
Through Hole, Right Angle
Packaging :
Bulk
JESD-609 Code :
e4
Current Rating :
5A
MIL Conformance :
No
Mating Post Length :
12.7mm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Shrouding :
Unshrouded
Radiation Hardening :
No
Additional Feature :
AMPMODU, POLARIZED
Insertion Force-Max :
4.448 N
RoHS Status :
RoHS Compliant
Insulation Material :
Thermoplastic
Operating Temperature :
-65°C~105°C
Contact Length - Post :
0.150 3.81mm
Option :
GENERAL PURPOSE
Contact Type :
Male Pin
Number of Positions Loaded :
All
UL Flammability Code :
94V-0
ELV :
Compliant
Factory Lead Time :
18 Weeks
Contact Resistance :
12mOhm
Lifecycle Status :
ACTIVE (Last Updated: 6 months ago)
Number of Conductors :
ONE
Mount :
Through Hole
Contact Length - Mating :
0.500 12.70mm
Withdrawl Force-Min :
.278 N
Insulation Resistance :
5000000000Ohm
Body Breadth :
0.25 inch
Datasheets
87258-3
Introducing Headers, Male Pins TE Connectivity AMP Connectors 87258-3 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Right Angle, Operating Temperature:-65°C~105°C, 87258-3 pinout, 87258-3 datasheet PDF, 87258-3 amp .Beyond Headers, Male Pins TE Connectivity AMP Connectors 87258-3 ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 87258-3


AMPMODU Mod I Series 1-Row Header Solder Brass Bulk Through Hole, Right Angle Gold Thermoplastic 3-Position Board to Board or Cable 0.250 6.35mm Height

87258-3 Overview


This product is packaged in a Header carton.Through Hole, Right Angle is the mounting type for the device.The product is packaged in a Bulk case.It's part of the AMPMODU Mod I Series.In addition, there are other features, such as AMPMODU, POLARIZED, to mention just a few.Mounting of the part is based on Through Hole.It runs at -65°C~105°C Operating Temperature.

87258-3 Features


AMPMODU Mod I series


87258-3 Applications


There are a lot of TE Connectivity AMP Connectors
87258-3 Rectangular Connectors applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
