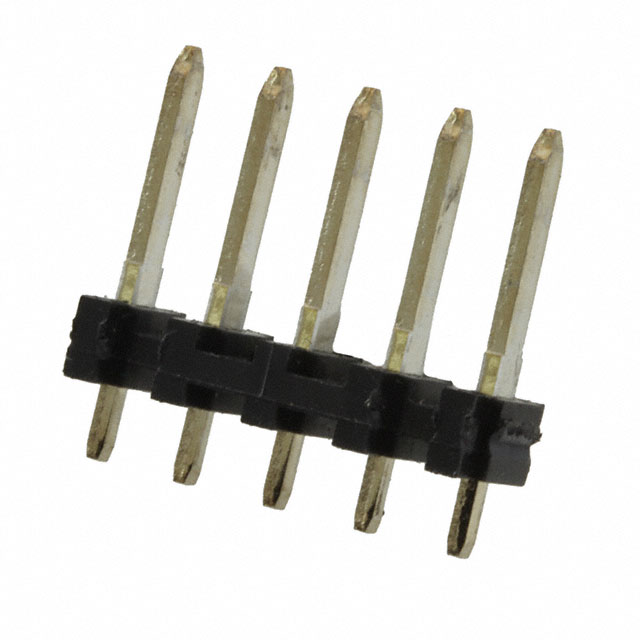

87160-1

Share

Or copy the link below:

Mfr.Part #
87160-1
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN HEADER VERT 5POS 3.96MM
Stock
939
In Stock :
939

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Male Pins
Radiation Hardening :
No
ELV :
Non-Compliant
Number of Positions :
5
Series :
AMPMODU Mod I
Contact Resistance :
12mOhm
Mixed Contacts :
No
Polarization Key :
POLARIZED HOUSING
Operating Temperature :
-65°C~105°C
Lead Length :
3.175mm
Plating Thickness :
200μin
Style :
Board to Board or Cable
RoHS Status :
Non-RoHS Compliant
Overall Contact Length :
0.655 16.64mm
Material Flammability Rating :
UL94 V-0
Additional Feature :
AMPMODU, POLARIZED
Published :
1997
Number Of PCB Rows :
1
Contact Current Rating :
5A
Housing Material :
Nylon
Number of Rows :
1
IEC Conformance :
No
Terminal Pitch :
3.96mm
Rated Current (Signal) :
5A
Mount :
Through Hole
PCB Thickness :
1.778mm
Number of Positions Loaded :
All
Shrouding :
Unshrouded
Mating Post Length :
10.287mm
Lead Free :
Contains Lead
Keyed :
yes
JESD-609 Code :
e0
MIL Conformance :
No
Flammability Rating :
UL94 V-0
Factory Lead Time :
21 Weeks
Insulation Material :
Thermoplastic
Pitch - Mating :
0.156 3.96mm
Contact Plating :
Lead, Tin
Contact Length - Mating :
0.405 10.29mm
Approval Agency :
UL
Packaging :
Bulk
Contact Shape :
RECTANGULAR
Current Rating :
5A
Fastening Type :
Push-Pull
Contact Finish Thickness - Post :
100.0μin 2.54μm
Pbfree Code :
No
UL Flammability Code :
94V-0
Contact Length - Post :
0.125 3.18mm
Insulation Height :
0.125 3.18mm
Contact Finish Thickness - Mating :
100.0μin 2.54μm
Number of Conductors :
ONE
Orientation :
Vertical
Connector Type :
Header
Contact Material :
Brass
Contact Gender :
Male
Contact Type :
Male Pin
Reliability :
COMMERCIAL
DIN Conformance :
No
Option :
GENERAL PURPOSE
Contact Finish - Mating :
Tin-Lead
Mounting Type :
Through Hole
Termination :
Solder
Filter Feature :
No
Lifecycle Status :
ACTIVE (Last Updated: 7 months ago)
Insulation Color :
Black
ECCN Code :
EAR99
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Datasheets
87160-1
Introducing Headers, Male Pins TE Connectivity AMP Connectors 87160-1 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-65°C~105°C, Mounting Type:Through Hole, 87160-1 pinout, 87160-1 datasheet PDF, 87160-1 amp .Beyond Headers, Male Pins TE Connectivity AMP Connectors 87160-1 ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 87160-1


AMPMODU Mod I Series 1-Row Header Solder Brass Bulk Through Hole Tin-Lead Thermoplastic 5-Position Board to Board or Cable 0.125 3.18mm Height

87160-1 Overview


Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the AMPMODU Mod I Series.Moreover, there are a number of other features, including AMPMODU, POLARIZED, to name just a few.Through Hole is used to mount the part.In this case, the device operates at -65°C~105°C Operating Temperature.

87160-1 Features


AMPMODU Mod I series


87160-1 Applications


There are a lot of TE Connectivity AMP Connectors
87160-1 Rectangular Connectors applications.


  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
