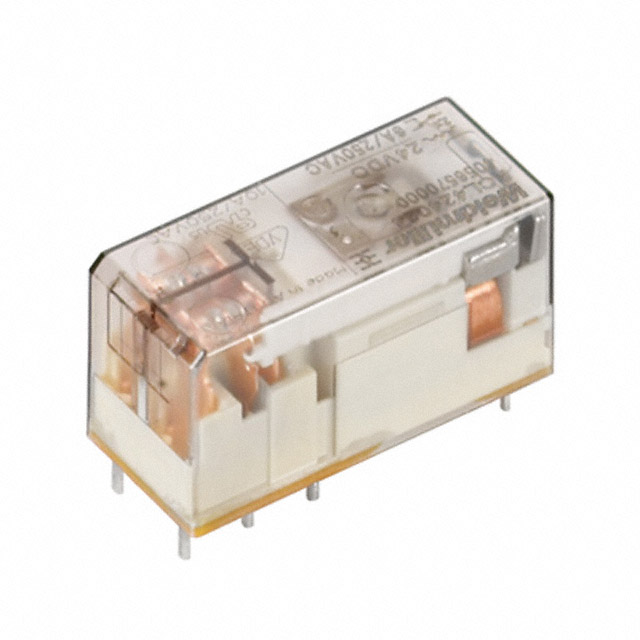

8693220000
Or copy the link below:
- Mfr.Part #
- 8693220000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE SPDT 12A 24V
- Stock
- 29,283
- In Stock ：
- 29,283
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Power Relays, Over 2 Amps
- Contact/Output Supply Type :
- AC
- Coil Voltage :
- 24VAC
- Operating Temperature :
- -40°C~70°C
- Coil Type :
- Non Latching
- Physical Dimension :
- 29mm x 12.7mm x 15.7mm
- Sealing :
- IP20
- Packaging :
- Bulk
- Body Breadth :
- 12.7 mm
- Throw Configuration :
- SPDT
- Termination Style :
- PC Pin
- Switching Voltage :
- 250VAC -Max
- Must Operate Voltage :
- 18VAC
- Contact Voltage(AC)-Max :
- 250V
- Contact Material :
- Silver Nickel (AgNi)
- Additional Feature :
- COIL OPERATE VOLTAGE(AC): 18 V; COIL RELEASE VOLTAGE(AC): 3.6 V
- Seal Rating :
- Sealed - Flux Protection
- Mounting Type :
- Through Hole
- Termination :
- PC Pin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Must Release Voltage :
- 3.6VAC
- Mount :
- Plug-In, Through Hole
- Coil/Input Supply Type :
- AC
- Contact Form :
- SPDT (1 Form C)
- Series :
- RCL
- Coil Resistance :
- 1.44kOhm
- Coil Current :
- 31.6mA
- Contact Rating (Current) :
- 12A
- Length :
- 29mm
- Reference Standard :
- UL; VDE
- ECCN Code :
- EAR99
- Published :
- 2012
- Release Time :
- 3ms
- Relay Action :
- Momentary
- Coil Power :
- 750mW
- Body Height :
- 15.7mm
- Operate Time :
- 7ms
- Relay Type :
- GENERAL PURPOSE
- RoHS Status :
- RoHS Compliant
- Coil Voltage (AC) :
- 24V
- Datasheets
- 8693220000
