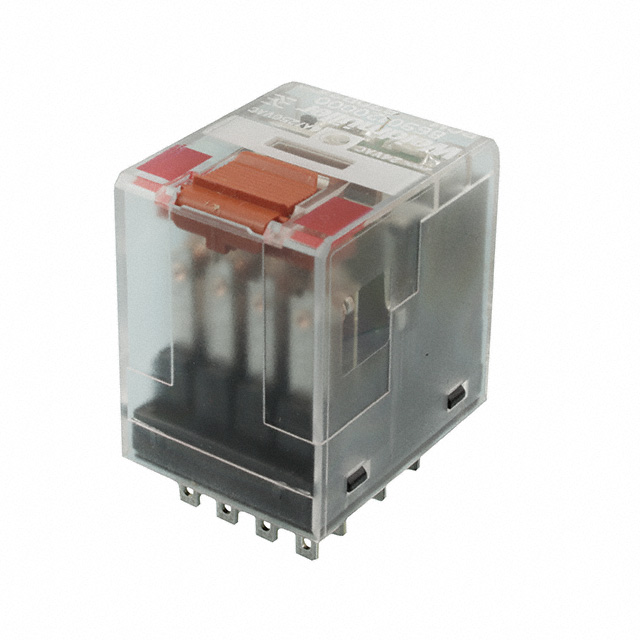

8690120000

Manufacturer :

Weidmuller

Product Category :

Power Relays, Over 2 Amps

Contact Rating (Current) :

6A

Switching Voltage :

240VAC -Max

Reference Standard :

UL; VDE

Coil Voltage :

24VAC

Physical Dimension :

28mm X 22.5mm X 29mm

Surface Mount :

No

Operate Time :

15ms

Width :

22.5mm

Coil Voltage (AC) :

24V

Mounting Type :

Socketable

Feature :

Lighted Indicator, Test Button

Release Time :

10ms

Number of Contacts :

4

ECCN Code :

EAR99

Coil Resistance :

192Ohm

Height :

28mm

Operating Temperature :

-40°C~70°C

Factory Lead Time :

12 Weeks

Must Operate Voltage :

19.2VAC

Relay Type :

GENERAL PURPOSE

Flammability Rating :

UL94 V-0

Contact Material :

Silver Nickel (AgNi)

Termination Style :

Plug In, Quick Connect - 0.110 (2.8mm)

Throw Configuration :

4PDT

Contact Voltage(AC)-Max :

250V

Packaging :

Bulk

Current Rating :

41.6mA

Electrical Life :

100000 Cycle(s)

Sealing :

IP20

Additional Feature :

COIL OPERATE VOLTAGE(AC): 19.2 V; COIL RELEASE VOLTAGE(AC): 7.2 V

Voltage - Rated :

24V

RoHS Status :

RoHS Compliant

Relay Action :

Momentary

Coil Type :

Non Latching

Contact Form :

4PDT (4 Form C)

Termination :

PLUG

Contact/Output Supply Type :

AC

Coil/Input Supply Type :

AC

Published :

2013

Mounting Feature :

Panel Mount

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Approval Agency :

CSA, VDE, cURus

Series :

RCM

Coil Power :

1W

Power Rating :

1W

Depth :

29mm

Must Release Voltage :

7.2VAC
