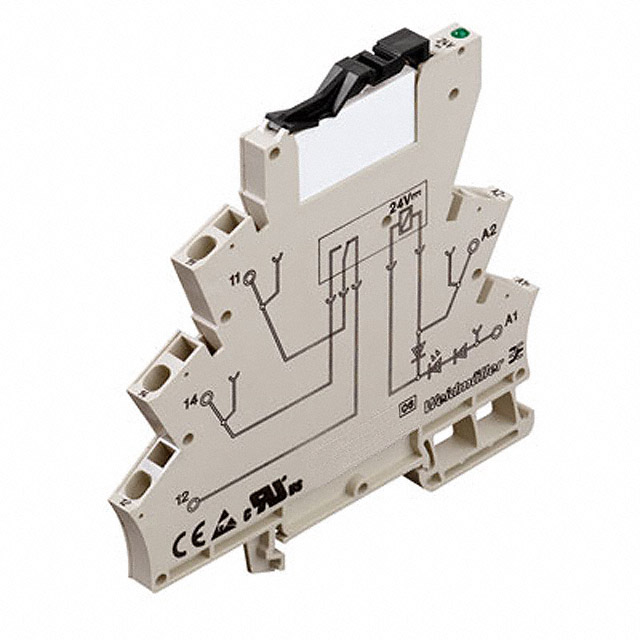

8660910000

Manufacturer :

Weidmuller

Product Category :

Power Relays, Over 2 Amps

Coil Voltage (DC) :

24V

Operate Time :

6.6ms

Feature :

Diode, Lighted Indicator, Socket Included

Release Time :

5.8ms

Approval Agency :

CE, EN, cULus

Termination Style :

Spring Terminal

Contact/Output Supply Type :

AC

Coil Resistance :

3.64kOhm

Coil Current(DC)-Max :

0.007A

Number of Contacts :

1

Switching Voltage :

250VAC -Max

RoHS Status :

RoHS Compliant

Height :

94mm

Contact Rating (Current) :

6A

Contact Form :

SPST-NO (1 Form A)

Voltage - Rated :

300V

Series :

MRZ

Relay Action :

Momentary

Number of Pins :

5

Coil/Input Supply Type :

DC

Must Operate Voltage :

16.9VDC

Published :

2013

Coil Type :

Non Latching

Mounting Type :

DIN Rail

Coil Power :

160mW

Reference Standard :

CE

Throw Configuration :

SPST

Operating Temperature :

-25°C~55°C

Coil Voltage :

24VDC

Max Current Rating :

6A

Power Rating :

160mW

Relay Type :

GENERAL PURPOSE

ECCN Code :

EAR99

Must Release Voltage :

6.5VDC

Sealing :

IP20

Max Voltage Rating (AC) :

250V

Mount :

DIN Rail, Plug-In

Factory Lead Time :

11 Weeks

Contact Material :

Silver Nickel (AgNi)

Current Rating :

6.6mA

Packaging :

Bulk

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Width :

6.1mm

Depth :

94mm
