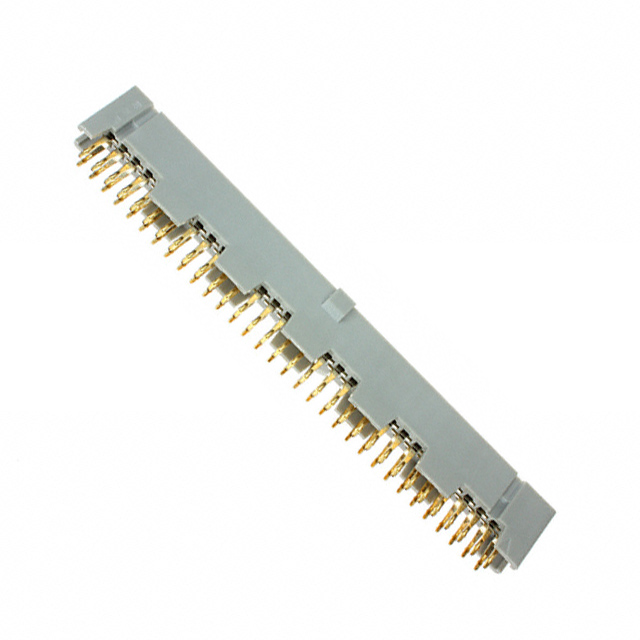

8564-4500PL
- Mfr.Part #
- 8564-4500PL
- Manufacturer
- 3M
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 64POS 0.1 GOLD PCB
- Stock
- 5,626
- In Stock :
- 5,626
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- 3M
- Product Category :
- Headers, Receptacles, Female Sockets
- Contact Material :
- COPPER ALLOY
- Contact Finish - Mating :
- Gold
- Insulation Height :
- 0.425 10.80mm
- Fastening Type :
- Push-Pull
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Plating :
- Gold
- RoHS Status :
- RoHS Compliant
- Material Flammability Rating :
- UL94 V-0
- Contact Shape :
- Square
- Published :
- 2003
- Number of Rows :
- 2
- Length :
- 85.8mm
- Pitch :
- 2.54mm
- Voltage - Rated :
- 1000V
- Max Operating Temperature :
- 105°C
- Gender :
- Receptacle
- Current Rating (Amps) :
- 1A
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Finish Thickness - Post :
- Flash
- Number of Positions :
- 64
- Mounting Type :
- Through Hole
- Lead Pitch :
- 2.54mm
- Series :
- 8500
- Housing Material :
- Polyester
- Max Current Rating :
- 1A
- Mount :
- Through Hole
- Contact Length - Post :
- 0.110 2.79mm
- Current Rating :
- 1A
- Contact Type :
- Female Socket
- Packaging :
- Bulk
- Connector Type :
- Receptacle
- Pitch - Mating :
- 0.100 2.54mm
- Contact Gender :
- FEMALE
- Contact Finish - Post :
- Gold
- Feature :
- Polarizing Key
- Orientation :
- Straight
- Operating Temperature :
- -55°C~105°C
- Number of Poles :
- 64
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Contacts :
- 64
- Housing Color :
- Grey
- Termination :
- Kinked Pin, Solder
- Lead Free :
- Lead Free
- Style :
- Board to Board or Cable
- Depth :
- 7.1mm
- Insulation Color :
- Gray
- Contact Finish Thickness - Mating :
- 12.0μin 0.30μm
- Min Operating Temperature :
- -55°C
- Color :
- Grey
- Number of Positions Loaded :
- All
- Voltage - Rated AC :
- 350V
- Datasheets
- 8564-4500PL
2 Rows Receptacle Kinked Pin, Solder Copper Alloy Through Hole Bulk Gold Polybutylene Terephthalate (PBT), Glass Filled 64 Positions Female Socket
8564-4500PL Overview
The packaging is Receptacle.Mounting type is Through Hole.To package the product, we use a Bulk case.This product is from the 8500 Series.It is best used at temperatures below 105°C.-55°C is the minimum temperature this device can operate at.A number of advantages are provided by its Polarizing Key feature.Mounted by Through Hole.Device runs at -55°C~105°C Operating Temperature.
