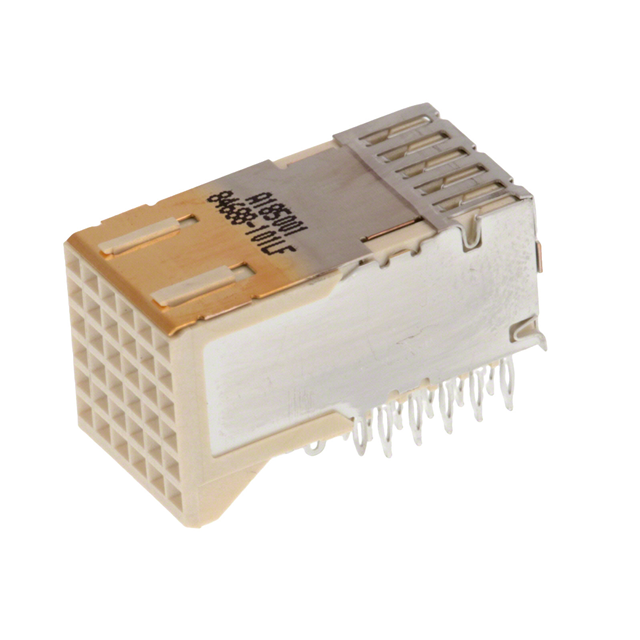

84688-101LF
Or copy the link below:
- Mfr.Part #
- 84688-101LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HIGH SPEED 36P EDGE MT
- Stock
- 5
- In Stock ：
- 5
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Specialized
- Feature :
- Board Guide, Shielded, Spacer
- Contact Plating :
- Gold, Tin
- Orientation :
- RIGHT ANGLE
- Color :
- Natural
- Operating Temperature :
- -55°C~105°C
- Number of Rows :
- 5
- Material Flammability Rating :
- UL94 V-0
- Flammability Rating :
- UL94 V-0
- Housing Material :
- Polymer
- Min Operating Temperature :
- -55°C
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Factory Lead Time :
- 10 Weeks
- Lead Free :
- Lead Free
- Pitch :
- 0.079 2.00mm
- Current Rating (Amps) :
- 1A
- Gender :
- Receptacle
- Packaging :
- Tube
- Contact Finish :
- Gold
- Max Operating Temperature :
- 105°C
- Number of Positions :
- 36
- Number of Contacts :
- 180
- Contact Layout, Typical :
- 30 Signal, 6 Ground
- Connector Type :
- Receptacle, Female Sockets
- Depth :
- 23.7mm
- Termination :
- Press-Fit
- Length :
- 11.98mm
- RoHS Status :
- RoHS Compliant
- Series :
- Metral® 1000
- Mount :
- Edge, Through Hole
- Current Rating :
- 1A
- Connector Style :
- High Speed
- Housing Color :
- Natural
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Number of Positions Loaded :
- All
- Datasheets
- 84688-101LF
Metral® 1000 Series Receptacle, Female Sockets Press-Fit Gold Natural 30.0μin 0.76μm 36 Positions Pitch: 0.079 2.00mm -55°C~105°C Tube Board Edge, Through Hole, Right Angle
84688-101LF Overview
Currently, it is packaged in Receptacle, Female Sockets.The mounting type of the device is Board Edge, Through Hole, Right Angle.A Tube case is used to package the product.A product of the Metral® 1000 Series, it belongs to the range of products of that series.A temperature below 105°C is best for using it.The device must run at -55°C degrees.A number of features make the Board Guide, Shielded, Spacer feature more powerful.Edge, Through Hole represents the mounting point for the part.-55°C~105°C Operating Temperature is the default operating temperature for the device.
84688-101LF Features
Metral® 1000 series
84688-101LF Applications
There are a lot of Amphenol ICC (FCI)
84688-101LF Backplane Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
