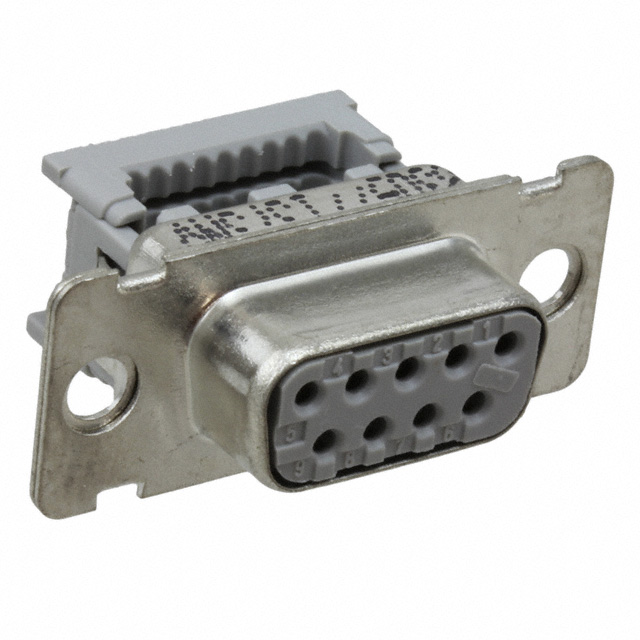

8309-8000
Or copy the link below:
- Mfr.Part #
- 8309-8000
- Manufacturer
- 3M
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 9POS PNL MNT IDC
- Stock
- 329
- In Stock ：
- 329
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- 3M
- Product Category :
- D-Sub Connector Assemblies
- Plating :
- Steel, Tin
- Housing Color :
- Grey
- Color :
- Gray
- Wire Gauge :
- 26-28 AWG
- Sensing Distance :
- 3 m
- Housing Material :
- Polybutylene
- Length :
- 31.2mm
- Lead Length :
- 3m
- Number of Terminations :
- 9
- Feature :
- Feed Through
- Cable Length :
- 3m
- Shell Material, Finish :
- Steel, Tin Plated
- Width :
- 16.6mm
- Flammability Rating :
- UL94 V-0
- Number of Positions :
- 9
- Max Operating Temperature :
- 105°C
- Number of Rows :
- 2
- Material Flammability Rating :
- UL94 V-0
- Published :
- 2005
- Max Current Rating :
- 1A
- Series :
- 8300
- Lead Free :
- Lead Free
- Contact Material :
- COPPER ALLOY
- Mounting Type :
- Panel Mount
- Termination :
- IDC, Ribbon Cable
- Contact Finish :
- Gold
- Connector Style :
- D-Sub
- Factory Lead Time :
- 16 Weeks
- Gender :
- Receptacle
- Contact Plating :
- Gold
- Current Rating :
- 1A
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Number of Contacts :
- 9
- Package / Case :
- Metal
- Operating Temperature :
- -55°C~105°C
- Mount :
- Cable, Panel
- Dielectric Material :
- Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Orientation :
- RIGHT ANGLE
- Depth :
- 12.4mm
- RoHS Status :
- RoHS Compliant
- Pitch :
- 2.76mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Type :
- Receptacle, Female Sockets
- Number of Ports :
- 1
- Shell Size, Connector Layout :
- 1 DE E
- Contact Type :
- Signal
- Min Operating Temperature :
- -55°C
- Current Rating (Amps) :
- 1A
- Flange Feature :
- Housing/Shell (Unthreaded)
- Packaging :
- Bulk
- Datasheets
- 8309-8000
8300 Series D-Sub Receptacle, Female Sockets 9-Position Receptacle Signal IDC, Ribbon Cable 1 DE E Panel Mount Copper Alloy Gold Steel, Tin Plated
8309-8000 Overview
The connector type Receptacle, Female Sockets refers to the connector type.The device's mounting type is Panel Mount.In order to package the product, a Bulk case is used.It belongs to the 8300 Series of products.It's best to use it when the temperature is below 105°C.This device must operate at a minimum temperature of -55°C.In the packaging with the Metal, there is a device enclosed in the package.It features 1 ports for managing a variety of tasks.Its Feed Through feature renders it more powerful in many ways.The part is mounted by Cable, Panel.The chip has 9 terminations.The device runs in -55°C~105°C Operating Temperature.
