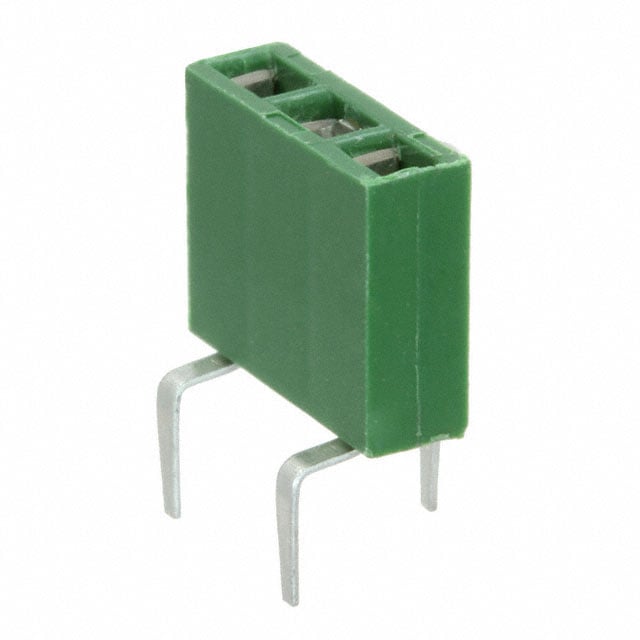

829265-3
Or copy the link below:
- Mfr.Part #
- 829265-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 3POS 0.1 GOLD PCB
- Stock
- 6,678
- In Stock ：
- 6,678
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Height :
- 6.2mm
- Mount :
- Through Hole
- Pitch - Mating :
- 0.100 2.54mm
- Packaging :
- Tray
- Housing Color :
- Black, Green
- Contact Finish - Post :
- Tin
- Insulation Height :
- 0.256 6.50mm
- Factory Lead Time :
- 37 Weeks
- Fastening Type :
- Push-Pull
- Insulation Material :
- Polybutylene Terephthalate (PBTP)
- Mounting Type :
- Through Hole
- Contact Plating :
- Tin, Gold
- Contact Finish Thickness - Mating :
- 31.5μin 0.80μm
- Contact Type :
- Female Socket
- Contact Length - Post :
- 0.120 3.05mm
- Contact Material :
- COPPER ALLOY
- Orientation :
- Vertical
- RoHS Status :
- RoHS Compliant
- Style :
- Board to Board
- Contact Shape :
- Square
- Sealable :
- No
- Min Operating Temperature :
- -65°C
- Published :
- 2011
- Housing Material :
- Polyester
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length - Tail :
- 3.05mm
- Insulation Color :
- Green
- Number of Rows :
- 1
- Number of Positions Loaded :
- All
- PCB Mount Retention :
- Without
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- PCB Thickness :
- 1.6mm
- Termination :
- Solder
- Contact Resistance :
- 12mOhm
- Number of Positions :
- 3
- Connector Type :
- Receptacle, Bottom or Top Entry
- Max Operating Temperature :
- 105°C
- ELV :
- Compliant
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Series :
- AMPMODU HV-100
- Lead Length :
- 3.1mm
- Flammability Rating :
- UL94 V-0
- Depth :
- 2.52mm
- Plating Thickness :
- 3µm
- Contact Finish - Mating :
- Gold
- Length :
- 7.62mm
- Datasheets
- 829265-3
1 Rows Receptacle, Bottom or Top Entry Solder Copper Alloy Through Hole Tray Gold Polybutylene Terephthalate (PBTP) 3 Positions Female Socket
829265-3 Overview
Currently, it is packaged in Receptacle, Bottom or Top Entry.The mounting type of the device is Through Hole.A Tray case is used to package the product.A product of the AMPMODU HV-100 Series, it belongs to the range of products of that series.A temperature below 105°C is best for using it.The device must run at -65°C degrees.Through Hole represents the mounting point for the part.
829265-3 Features
AMPMODU HV-100 series
829265-3 Applications
There are a lot of TE Connectivity AMP Connectors
829265-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
