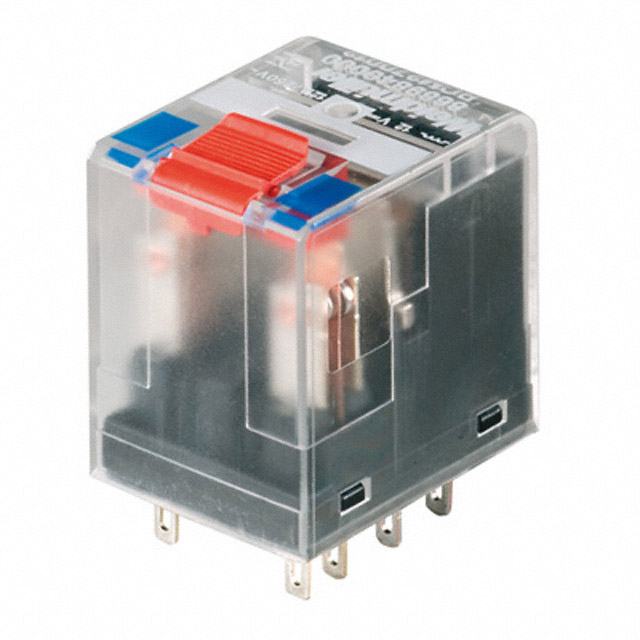

8074650000
Or copy the link below:
- Mfr.Part #
- 8074650000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE 4PDT 6A 6V
- Stock
- 47,392
- In Stock ：
- 47,392
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Power Relays, Over 2 Amps
- Coil Voltage (DC) :
- 6V
- Power Rating :
- 750mW
- Physical Dimension :
- 28mm X 22.5mm X 29mm
- Coil Type :
- Non Latching
- Published :
- 2013
- Mounting Feature :
- Panel Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Radiation Hardening :
- No
- Current Rating :
- 125mA
- Approval Agency :
- CSA, VDE, cURus
- ECCN Code :
- EAR99
- Operating Temperature :
- -40°C~70°C
- Electrical Life :
- 100000 Cycle(s)
- Coil/Input Supply Type :
- DC
- Number of Contacts :
- 4
- Termination :
- PLUG
- Sealing :
- IP50
- Switching Voltage :
- 240VAC -Max
- Contact Voltage(AC)-Max :
- 250V
- Relay Action :
- Momentary
- Contact/Output Supply Type :
- AC
- Contact Form :
- 4PDT (4 Form C)
- Series :
- RCM
- Coil Current(DC)-Max :
- 0.125A
- Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Contact Material :
- Silver Nickel (AgNi)
- Factory Lead Time :
- 10 Weeks
- Coil Power :
- 750mW
- Surface Mount :
- No
- Depth :
- 29mm
- Reference Standard :
- VDE
- Voltage - Rated :
- 6V
- Must Operate Voltage :
- 4.5VDC
- Termination Style :
- Plug In, Quick Connect - 0.110 (2.8mm)
- Release Time :
- 10ms
- Width :
- 22.5mm
- Contact Rating (Current) :
- 6A
- Coil Resistance :
- 48Ohm
- Mounting Type :
- Socketable
- Relay Type :
- GENERAL PURPOSE
- Weight :
- 30g
- Must Release Voltage :
- 0.6VDC
- Feature :
- Test Button
- Throw Configuration :
- 4PDT
- Height :
- 28mm
- Coil Voltage :
- 6VDC
- Operate Time :
- 15ms
- Packaging :
- Bulk
- Datasheets
- 8074650000
