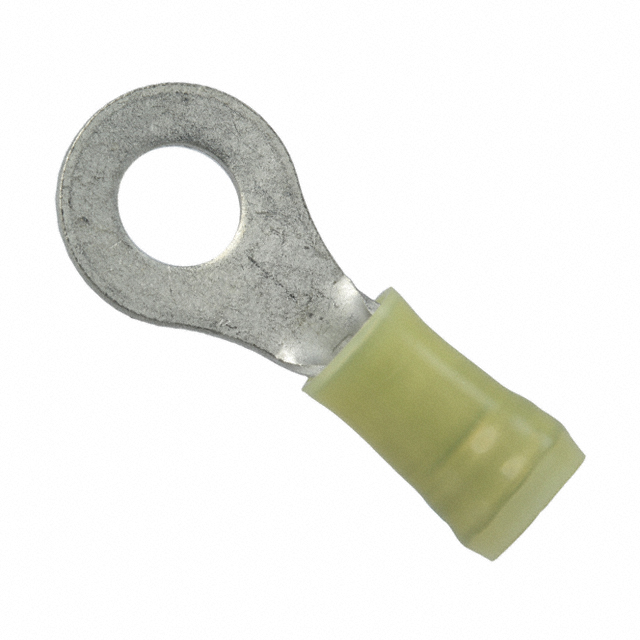

8-35110-1
Or copy the link below:
- Mfr.Part #
- 8-35110-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 10-12AWG #1/4
- Stock
- 1,061
- In Stock ：
- 1,061
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Color :
- Yellow
- Mounting Type :
- Free Hanging (In-Line)
- Gender :
- FEMALE
- Orientation :
- Straight
- Width :
- 13.49mm
- Contact Material :
- Copper
- Insulation Diameter :
- 0.150 ~ 0.250 (3.81mm ~ 6.35mm)
- Stud/Tab Size :
- 1/4 Stud
- ELV :
- Compliant
- Lead Free :
- Not Applicable
- Stud Diameter :
- 6.731 mm
- Terminal Type :
- Circular
- ECCN Code :
- EAR99
- Voltage - Rated AC :
- 300V
- Series :
- PIDG
- Factory Lead Time :
- 5 Weeks
- Wire/Cable Gauge :
- 10 AWG
- Stud Size :
- M6
- Material - Insulation :
- Polyamide (PA), Nylon
- Terminal and Terminal Block Type :
- WIRE TERMINAL
- REACH SVHC :
- Unknown
- Insulation :
- Insulated
- Wire Gauge (Max) :
- 10 AWG
- Pbfree Code :
- yes
- Contact Plating :
- Tin
- Length :
- 33.58mm
- Termination :
- Crimp
- Heavy Duty :
- No
- Wire Gauge :
- 10-12 AWG
- Packaging :
- Bulk
- Insulated Wire Support :
- yes
- Published :
- 2008
- Plating Thickness :
- 2.54μm
- Length - Overall :
- 1.322 33.58mm
- Number of Holes :
- 1
- Tongue Thickness :
- 1.02mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Free Hanging, Stud
- RoHS Status :
- RoHS Compliant
- Depth :
- 13.49mm
- Thickness :
- 0.040 1.02mm
- Voltage - Rated :
- 300V
- Wire/Cable Diameter :
- 6.35 mm
- Width - Outer Edges :
- 0.531 13.49mm
- Wire Gauge (Min) :
- 10 AWG
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Material Thickness :
- 1.016mm
- HTS Code :
- 8536.90.40.00
- Feature :
- Serrated Termination
- Datasheets
- 8-35110-1
8-35110-1 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
