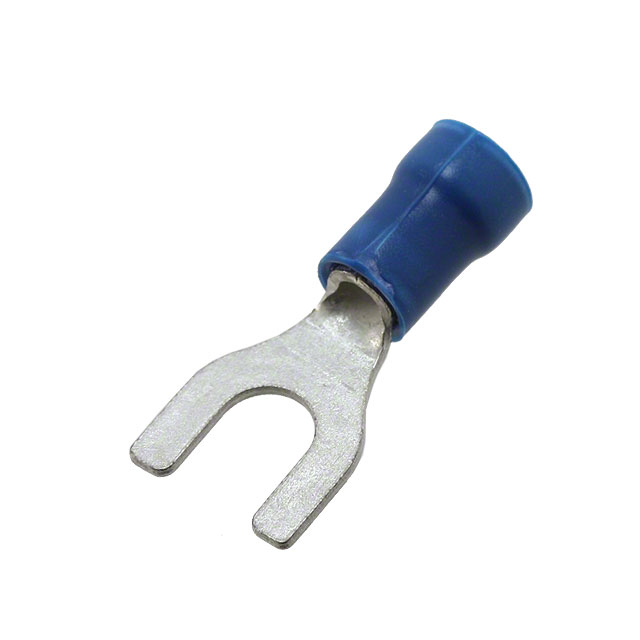

8-34167-1
Or copy the link below:
- Mfr.Part #
- 8-34167-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 14-16AWG #10 BLU
- Stock
- 590
- In Stock ：
- 590
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- Voltage - Rated AC :
- 600V
- Contact Material :
- Copper
- Lead Free :
- Lead Free
- Insulation :
- Insulated
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Crimp
- Insulation Diameter :
- 0.118 ~ 0.193 (3.00mm ~ 4.90mm)
- Terminal and Terminal Block Type :
- FORK TERMINAL
- Heavy Duty :
- No
- Stud/Tab Size :
- 10 Stud
- Length - Overall :
- 0.920 23.37mm
- Contact Plating :
- Tin
- Length - Termination :
- 0.416 10.57mm
- Plating Thickness :
- 2.54μm
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Color :
- Blue
- Voltage - Rated :
- 600V
- Wire Gauge :
- 14-16 AWG
- Insulated Wire Support :
- yes
- Tongue Inside Opening :
- 0.197 (5.00mm)
- Terminal Type :
- Standard
- Tongue Thickness :
- 790μm
- Length - Ring Center to Termination :
- 0.312 7.92mm
- Wire Cross Section :
- 2.62 mm2
- Wire/Cable Gauge :
- 14 AWG
- RoHS Status :
- RoHS Compliant
- Diameter - Inside :
- 4.95 mm
- Mount :
- Free Hanging, Stud
- Packaging :
- Bulk
- Material - Insulation :
- Poly-Vinyl Chloride (PVC)
- Feature :
- Serrated Termination
- Published :
- 2005
- Factory Lead Time :
- 15 Weeks
- Gender :
- FEMALE
- Wire Gauge (Max) :
- 14 AWG
- HTS Code :
- 8536.90.40.00
- REACH SVHC :
- Unknown
- ECCN Code :
- EAR99
- Mounting Type :
- Free Hanging (In-Line)
- Width - Outer Edges :
- 0.385 9.78mm
- Material Thickness :
- 790μm
- Wire Gauge (Min) :
- 16 AWG
- Series :
- Plasti-Grip
- Orientation :
- Straight
- Stud Diameter :
- 5 mm
- Connector Type :
- Receptacle
- Wire/Cable Diameter :
- 4.9 mm
- Length :
- 23.37mm
- ELV :
- Compliant
- Datasheets
- 8-34167-1
8-34167-1 datasheet pdf and Terminals - Spade Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
