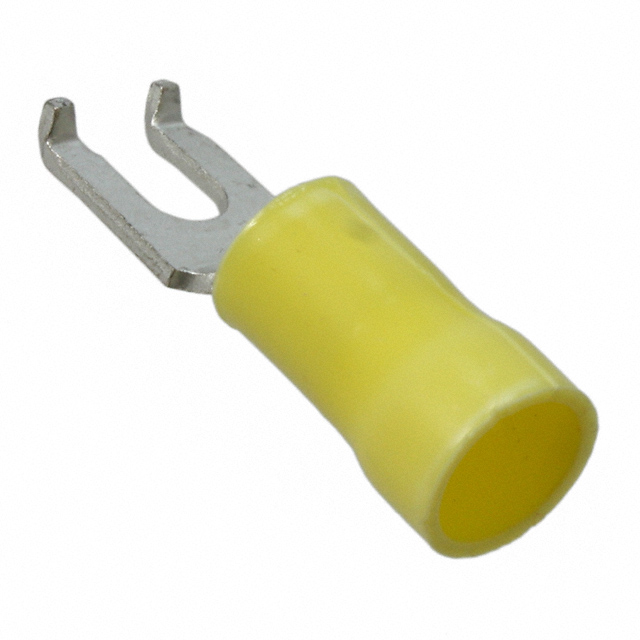

8-324581-2
Or copy the link below:
- Mfr.Part #
- 8-324581-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 10-12AWG #6 YEL
- Stock
- 297
- In Stock ：
- 297
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- Depth :
- 7.52mm
- Stud Size :
- M3.5
- Length :
- 25.83mm
- Wire Cross Section :
- 6.64 mm2
- Length - Ring Center to Termination :
- 0.250 6.35mm
- Stud Diameter :
- 3.68 mm
- Wire Gauge :
- 10-12 AWG
- Feature :
- Serrated Termination
- Terminal Gender :
- FEMALE
- Orientation :
- Straight
- RoHS Status :
- RoHS Compliant
- Length - Termination :
- 0.591 15.01mm
- Wire/Cable Diameter :
- 6.35 mm
- Terminal and Terminal Block Type :
- FORK TERMINAL
- Factory Lead Time :
- 17 Weeks
- Mounting Type :
- Free Hanging (In-Line)
- Material - Insulation :
- Poly-Vinyl Chloride (PVC)
- Insulation :
- Insulated
- Width - Outer Edges :
- 0.296 7.52mm
- Contact Plating :
- Tin
- Termination :
- Crimp
- Tongue Thickness :
- 1.02mm
- Length - Overall :
- 1.057 26.85mm
- ECCN Code :
- EAR99
- Terminal Type :
- Flanged
- Heavy Duty :
- No
- Packaging :
- Bulk
- Wire/Cable Gauge :
- 12 AWG
- Contact Material :
- Copper
- HTS Code :
- 8536.90.40.00
- REACH SVHC :
- No SVHC
- Stud/Tab Size :
- 6 Stud
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Insulation Diameter :
- 0.150 ~ 0.250 (3.81mm ~ 6.35mm)
- Voltage - Rated AC :
- 600V
- Wire Gauge (Max) :
- 10 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2008
- Wire Gauge (Min) :
- 10 AWG
- Insulated Wire Support :
- yes
- Lead Free :
- Not Applicable
- Color :
- Yellow
- Mount :
- Free Hanging, Stud
- ELV :
- Compliant
- Series :
- Plasti-Grip
- Tongue Inside Opening :
- 0.145 (3.68mm)
- Datasheets
- 8-324581-2
8-324581-2 datasheet pdf and Terminals - Spade Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
