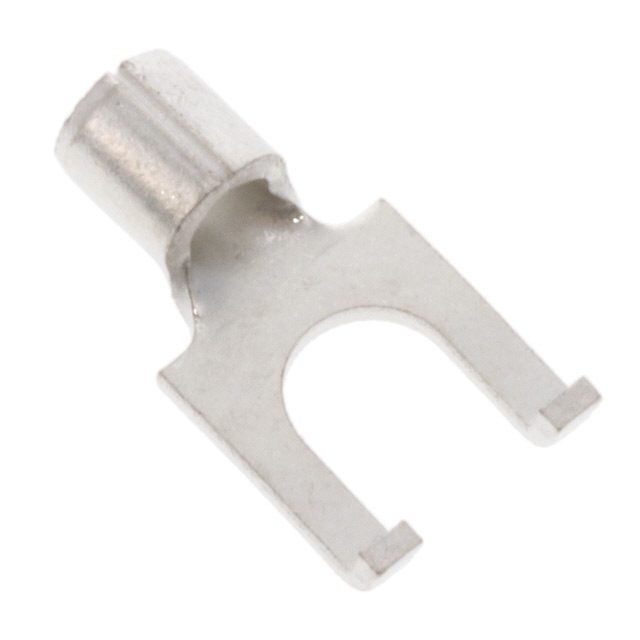

8-320856-1
Or copy the link below:
- Mfr.Part #
- 8-320856-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 14-16AWG #8
- Stock
- 825
- In Stock ：
- 825
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- Factory Lead Time :
- 4 Weeks
- Width - Outer Edges :
- 0.294 7.47mm
- Contact Material :
- Copper
- Wire Gauge (Max) :
- 14 AWG
- Tongue Thickness :
- 790μm
- Length - Ring Center to Termination :
- 0.203 5.16mm
- Series :
- Solistrand
- Terminal Type :
- Flanged
- Diameter - Inside :
- 2.16 mm
- Mounting Type :
- Free Hanging (In-Line)
- ECCN Code :
- EAR99
- RoHS Status :
- RoHS Compliant
- Packaging :
- Bulk
- Published :
- 1997
- Pbfree Code :
- yes
- Wire Gauge (Min) :
- 16 AWG
- Wire Cross Section :
- 2.62 mm2
- Tongue Inside Opening :
- 0.171 (4.34mm)
- Insulation :
- Non-Insulated
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Length - Termination :
- 0.181 4.60mm
- Plating Thickness :
- 2.54μm
- Feature :
- Brazed Seam, Serrated Termination
- Terminal Gender :
- FEMALE
- Lead Free :
- Not Applicable
- Contact Finish :
- Tin
- Heavy Duty :
- No
- Mount :
- Stud
- Stud Diameter :
- 4.34 mm
- Termination :
- Crimp
- Length - Overall :
- 0.545 13.84mm
- Length :
- 13.0302mm
- Stud Size :
- M4
- Wire Gauge :
- 14-16 AWG
- Terminal and Terminal Block Type :
- WIRE TERMINAL
- HTS Code :
- 8536.90.40.00
- Stud/Tab Size :
- 8 Stud
- Material Thickness :
- 840μm
- ELV :
- Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 8-320856-1
