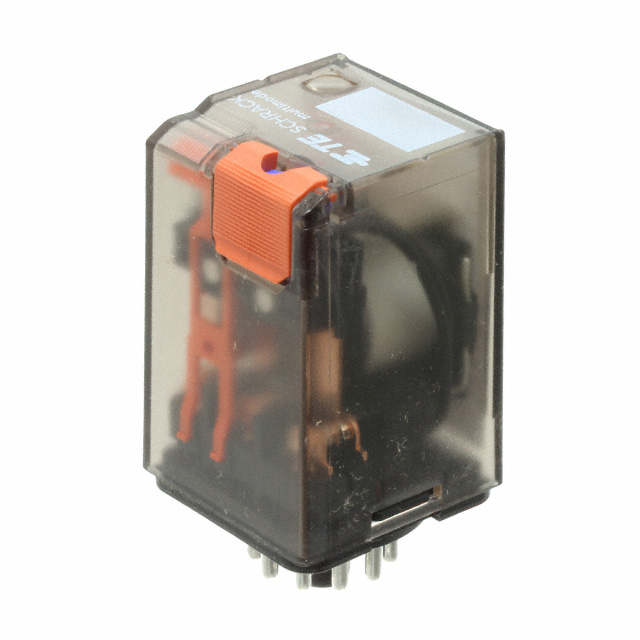

8-1415013-1
Or copy the link below:
- Mfr.Part #
- 8-1415013-1
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Dust Cover
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE 3PDT 10A 250V
- Stock
- 45,585
- In Stock ：
- 45,585
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Power Relays, Over 2 Amps
- Product Depth (mm) :
- 35.5(mm)
- Contact Current Rating :
- 10(A)
- LED Indicator :
- yes
- Coil Voltage DC :
- 250
- Contact Arrangement :
- 3PDT
- Voltage Rating (VAC) :
- 400(V)
- Must Release Voltage :
- 25 VDC
- Package :
- Bulk
- Supplier Package :
- Dust Cover
- Mounting Style :
- Plug-In
- Contact Material :
- Nickel-Silver
- Release Time :
- 10 ms
- Seal Rating :
- -
- Operate Time :
- 15 ms
- Product Length :
- 35.6 mm
- Maximum Power Rating :
- 2.5 kVA
- Package / Case :
- Dust Cover
- Must Operate Voltage :
- 187.5 VDC
- Operating Temperature :
- -40 to 60 °C
- Termination Style :
- 11-Pin Circular Plug
- Coil Insulation :
- Class B
- Relay Type :
- GENERAL PURPOSE
- Rad Hardened :
- No
- Product Length (mm) :
- 35.6(mm)
- Series :
- *
- Operating Temp Range :
- -40C to 60C
- Coil Type :
- Non Latching
- Base Product Number :
- 8-1415013
- Pin Count :
- 11
- Relay Construction :
- Non-Latching
- Seal :
- Unsealed
- Coil Voltage :
- 250VDC
- Mounting Type :
- Socketable
- Features :
- Lighted Indicator, Test Button
- Contact Rating (Current) :
- 10 A
- Switching Voltage :
- 400VAC - Max
- Product Height (mm) :
- 57(mm)
- Type :
- General purpose relay
- Mounting :
- Plug-In
- Coil Suppression Diode :
- No
- Contact Form :
- 3 Form C
- Product Status :
- Obsolete
- Datasheets
- 8-1415013-1
