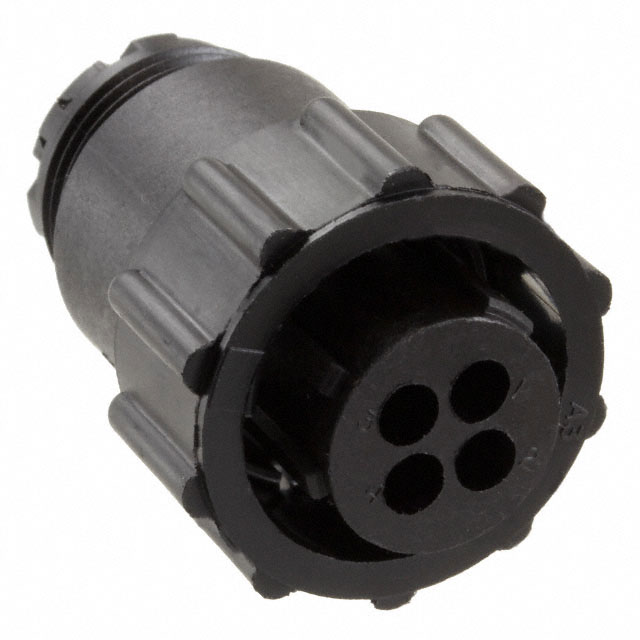

796094-2
Or copy the link below:
- Mfr.Part #
- 796094-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG HSG FMALE 4POS INLINE
- Stock
- 9,214
- In Stock ：
- 9,214
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Circular Connector Housings
- VDE Tested :
- No
- Insert Material :
- Thermoplastic
- Material Flammability Rating :
- UL94 V-0
- Shell Material :
- Polyamide (PA), Nylon
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Ratings :
- Dust Tight, IP65, IP67, Waterproof
- Number of Power Positions :
- 0
- Flammability Rating :
- UL94 V-0
- IEC Conformance :
- No
- Factory Lead Time :
- 4 Weeks
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Type :
- For Female Sockets
- Material :
- Plastic
- REACH SVHC :
- No SVHC
- Body Material :
- Nylon, Polyamide
- Housing Color :
- Black
- DIN Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Nylon
- ELV :
- Compliant
- Number of Positions :
- 4
- Total Number of Contacts :
- 4
- Mounting Type :
- Free Hanging (In-Line)
- Max Voltage Rating (AC) :
- 600V
- Operating Supply Voltage :
- 600V
- Filter Feature :
- No
- Note :
- Contacts Not Included
- RoHS Status :
- RoHS Compliant
- Published :
- 2007
- Packaging :
- Bulk
- Lead Free :
- Lead Free
- Feature :
- Coupling Nut
- Empty Shell :
- yes
- Contact Size :
- 16
- Fastening Type :
- Threaded
- Environmental Characteristics :
- CORROSION RESISTANT
- Mount :
- Cable, Free Hanging
- Series :
- CPC Series 1
- Contact Type :
- Crimp
- Number of Ports :
- 1
- Operating Temperature :
- -55°C~105°C
- Gender :
- Male
- Orientation :
- Keyed
- Length :
- 36.2mm
- Contact Shape :
- Circular
- Shielding :
- Unshielded
- Voltage - Rated :
- 600V
- Approval Agency :
- CSA, UL, VDE
- Connector Type :
- Plug Housing
- Option :
- GENERAL PURPOSE
- Shell Size - Insert :
- 11-4
- Mating Retention :
- With
- Contact Gender :
- FEMALE
- Sealable :
- yes
- Pbfree Code :
- yes
- MIL Conformance :
- No
- Datasheets
- 796094-2
Plug Housing Polyamide (PA), Nylon Free Hanging (In-Line) 4 Positions Bulk Threaded Unshielded Contacts Not Included CPC Series 1
796094-2 Overview
Currently, it is packaged in Plug Housing.The mounting type of the device is Free Hanging (In-Line).A Bulk case is used to package the product.A product of the CPC Series 1 Series, it belongs to the range of products of that series.In addition to its benefits, this part shares a number of advantages with other For Female Sockets products.The operating system can be configured to maintain the value of Coupling Nut when it operates.Using a Cable, Free Hanging socket is required in order to mount the item.There are 1 ports available for a variety of tasks to be performed on it.
796094-2 Features
CPC Series 1 series
796094-2 Applications
There are a lot of TE Connectivity AMP Connectors
796094-2 Circular Connectors applications.
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
- Music reproduction technology
- Communication Systems
- Data Acquisition Systems
- Handheld Terminal Interface
