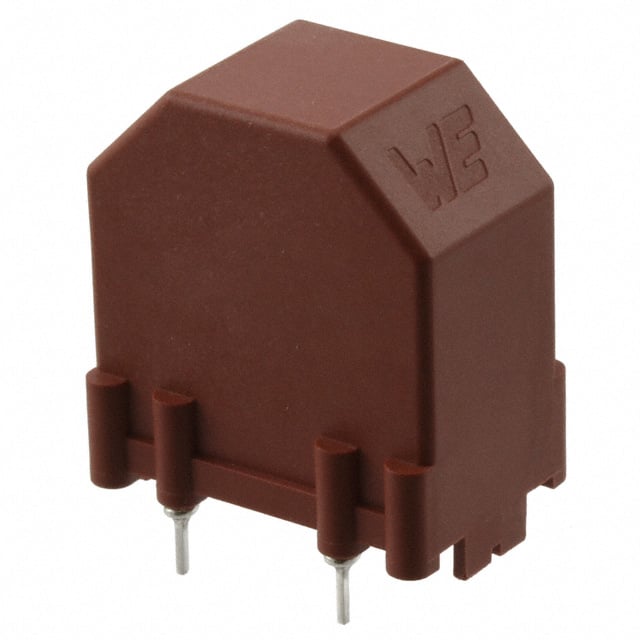

7446322007

Manufacturer :

Würth Elektronik

Product Category :

Common Mode Chokes

DC Resistance (DCR) (Max) :

160mOhm

Number of Lines :

2

Packaging :

Tray

Series :

WE-LF

Height :

30.5054mm

Current Rating (Max) :

1.9A

Length :

26.4922mm

Filter Type :

Power Line

Tolerance :

30%

Max DC Current :

1.9A

Package / Case :

Vertical, 4 PC Pin

Factory Lead Time :

22 Weeks

Width :

18.4912mm

REACH SVHC :

No SVHC

Height (Max) :

1.201 30.50mm

Resistance :

16Ohm

Inductance Tolerance :

30%

Inductance :

6.8 mH

Min Operating Temperature :

-40°C

Mounting Type :

Through Hole

Current Rating :

1.9A

Operating Temperature :

-40°C~125°C

Current :

1.9A

Test Frequency :

50Hz

Size / Dimension :

1.043Lx0.728W 26.50mmx18.50mm

Termination :

Radial

Voltage - Rated AC :

250V

Number of Pins :

4

Mount :

Through Hole

RoHS Status :

ROHS3 Compliant

Max Operating Temperature :

125°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Inductance @ Frequency :

6.8mH @ 10kHz
