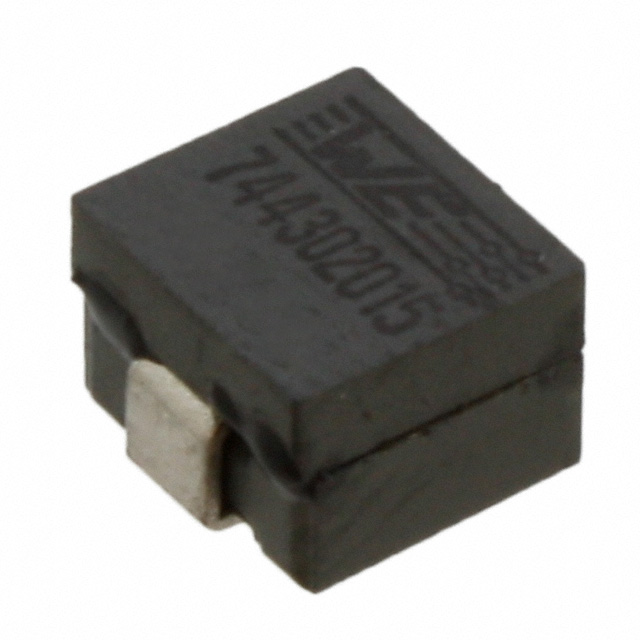

744302015
Or copy the link below:
- Mfr.Part #
- 744302015
- Manufacturer
- Würth Elektronik
- Package / Case
- Nonstandard
- Datasheet
- Download
- Description
- FIXED IND 150NH 30A 0.235MOHM SM
- Stock
- 8,479
- In Stock ：
- 8,479
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Würth Elektronik
- Product Category :
- Fixed Inductors
- Factory Lead Time :
- 56 Weeks
- DC Resistance (DCR) :
- 0.235mOhm
- Max Operating Temperature :
- 125°C
- Width :
- 7mm
- Number of Pins :
- 2
- Frequency - Self Resonant :
- 55MHz
- Length :
- 7.1374mm
- Operating Temperature :
- -40°C~125°C
- Termination :
- SMD/SMT
- Material - Core :
- Manganese Zinc Ferrite (MnZn)
- Height Seated (Max) :
- 0.197 5.00mm
- Current Rating (Amps) :
- 30A
- Mount :
- Surface Mount
- Type :
- Wirewound
- Mounting Type :
- Surface Mount
- Resistance :
- 235μOhm
- Test Frequency :
- 100kHz
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Inductance Frequency - Test :
- 100kHz
- Package / Case :
- Nonstandard
- Current - Saturation :
- 32A
- Series :
- WE-HCM
- Size / Dimension :
- 0.281Lx0.276W 7.15mmx7.00mm
- Packaging :
- Cut Tape (CT)
- Inductance Tolerance :
- 20%
- Height :
- 5.0038mm
- Min Operating Temperature :
- -40°C
- Max DC Current :
- 30A
- Current Rating :
- 30A
- REACH SVHC :
- Unknown
- RoHS Status :
- ROHS3 Compliant
- Composition :
- Wirewound
- Inductance :
- 150nH
- RMS Current (Irms) :
- 30A
- Shielding :
- Shielded
- Tolerance :
- ±20%
- Datasheets
- 744302015
