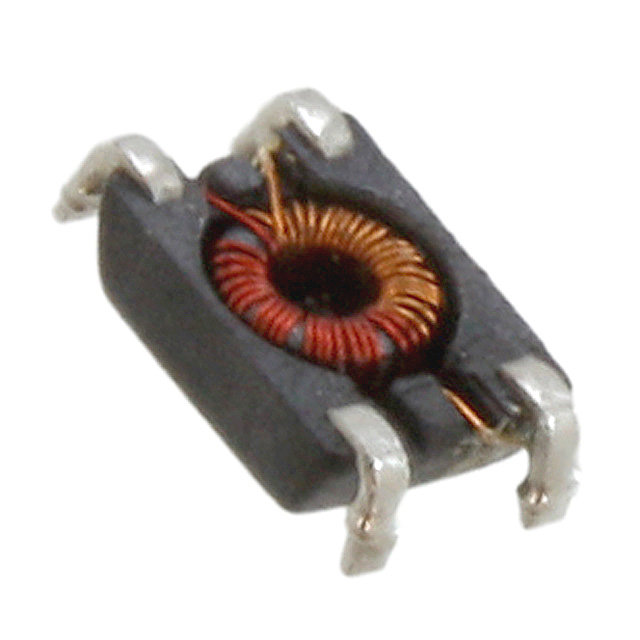

744212100

Manufacturer :

Würth Elektronik

Product Category :

Common Mode Chokes

Inductance Tolerance :

50%

Current Rating (Max) :

300mA

Mounting Type :

Surface Mount

Max Operating Temperature :

105°C

Mount :

Surface Mount

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Height :

1.65mm

Series :

WE-SL1

Operating Temperature :

-40°C~105°C

Inductance @ Frequency :

10μH @ 100kHz

Width :

3.6mm

Depth :

3.6mm

Factory Lead Time :

14 Weeks

Self Resonant Frequency :

100kHz

REACH SVHC :

No SVHC

Current Rating :

300mA

Size / Dimension :

0.256Lx0.142W 6.50mmx3.60mm

Number of Pins :

4

Voltage - Rated AC :

80V

Min Operating Temperature :

-40°C

Impedance :

1.2kOhm

Inductance :

10 µH

Packaging :

Tape and Reel (TR)

DC Resistance (DCR) (Max) :

240mOhm

Impedance @ Frequency :

1.2kOhms @ 135MHz

Current :

300mA

Package / Case :

Horizontal, 4 J-Lead

Voltage - Rated DC :

80V

Termination :

SMD/SMT

Test Frequency :

100kHz

Core Material :

Ferrite

RoHS Status :

ROHS3 Compliant

Max DC Current :

300mA

Height (Max) :

0.071 1.80mm

Number of Lines :

2

Filter Type :

Signal Line

Length :

6.5mm

Tolerance :

50%
