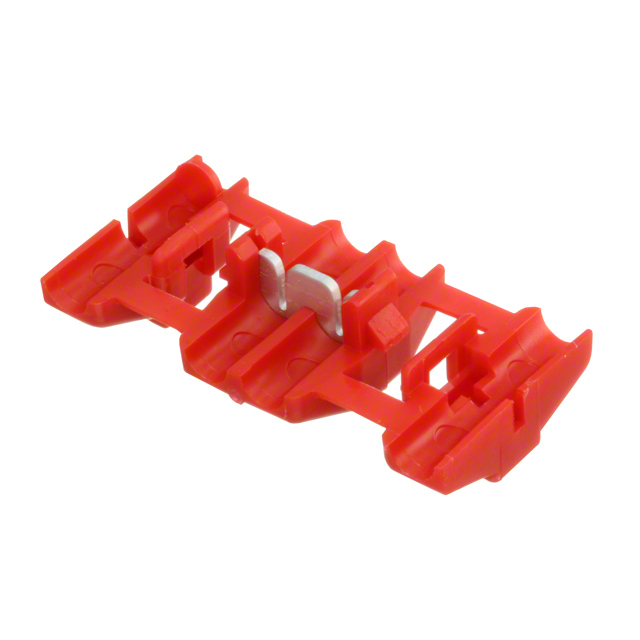

735410

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire Splice Connectors

Connector Type :

BOARD CONNECTOR

Heavy Duty :

No

Mounting Style :

Straight

Body Plating :

Tin

Material :

Nylon

REACH SVHC :

Unknown

Reliability :

COMMERCIAL

Terminal Type :

Inline, Tap

Wire Gauge (Min) :

20 AWG

Packaging :

Bulk

Wire/Cable Type :

Discrete

Color :

Red

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

RoHS Compliant

Mounting Option 1 :

Latch

Gender :

Male

Operating Temperature (Max) :

130°C

Contact Style :

SQ PIN-SKT

Number Of PCB Rows :

1

Rated Current (Signal) :

2A

Contact Finish - Mating :

SN-PB ON NI

Body/Shell Style :

Receptacle

Termination :

Crimp

Published :

1998

Insulated Wire Support :

yes

Number of Wire Entries :

2

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Number of Rows :

1

Factory Lead Time :

24 Weeks

Lead Free :

Not Applicable

PCB Contact Pattern :

RECTANGULAR

Mounting Option 2 :

LOCKING

Insulation Diameter :

4 mm

Wire Gauge (Max) :

18 AWG

Insulation :

Fully Insulated

Contact Resistance :

15mOhm

Number of Conductors :

ONE

Reference Standard :

UL, CSA

Operating Temperature (Min) :

-65°C

Total Number of Contacts :

10

Wire/Cable Gauge :

18 AWG

Length :

34.8996mm

Mating Contact Pitch :

0.1 inch

Body Material :

Brass

Dielectric Withstanding Voltage :

1500VAC V

Diameter :

12.5mm

ELV :

Compliant

Contact Pattern :

RECTANGULAR

Durability :

100 Cycles

Mounting Type :

BOARD

Depth :

12.5mm

Wire Gauge :

18-20 AWG
