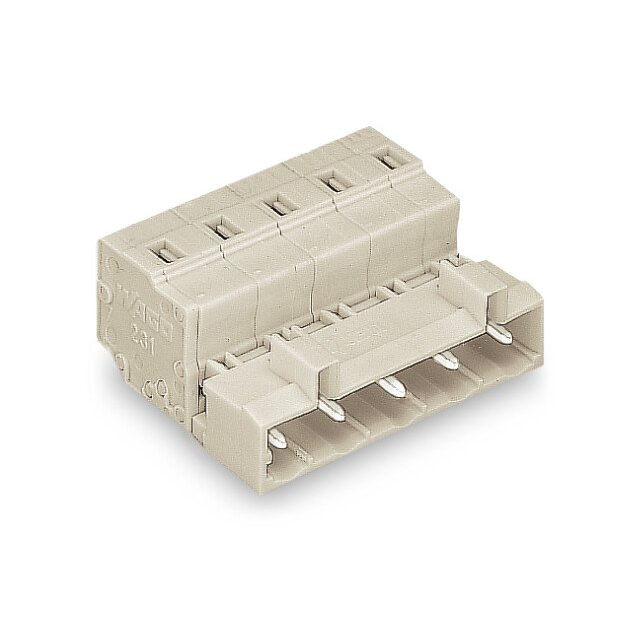

723-603

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Voltage :

300 V

Material housing :

Plastic

CS :

7.50mm

With protective conductor :

No

Insulation Height :

0.563 (14.30mm)

Connection :

-

Number of Rows :

1

Mounting Type :

Free Hanging (In-Line)

Number of Circuits :

3

Plug Wire Entry :

180°

Maximum Voltage Rating :

500V

Industrial packaging :

yes

Dim :

(L x W x H) 14.30 x 27.50 x 23.20 mm

Mounting :

Cable Mount

Connectable conductor cross section multi-wired :

0.08 - 2.5

Temperature :

-60-100 °C

Contact Material :

Electrolytic Copper

Approvals :

CB, UR

AWG (min.) :

28

Rated surge voltage :

6

Material Flammability Rating :

UL94 V-0

Positions Per Level :

3

Wire Size :

28-12 AWG

HTS :

8536.69.40.51

Width :

27.50mm

Termination Style :

Screwless - Push-In Spring

Series :

723

Manufacturer part # :

723-603

Gender :

PL

Type :

Terminal Block

EU RoHS :

Compliant

Termination Method :

Clamp

Nominal current :

15A

Pins :

3

Number of Positions :

3

Screw Size :

-

Inflammability class of insulation material according to with UL94 :

V0

Ingress Protection :

-

Pollution degree :

2

Wire Gauge or Range - AWG :

12-28 AWG

Maximum Operating Temperature (°C) :

100

ECCN (US) :

EAR99

Stripping length (max.) :

9.00mm

Material of contact surface :

Tin

Color :

Gray

Height :

23.20mm

Minimum Operating Temperature (°C) :

-60

Voltage - IEC :

1 kV

Over voltage category :

III

Length :

14.30mm

Product Height (mm) :

27.5

Maximum Current Rating (A) :

15

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Product Depth (mm) :

14.3

Number of Contacts :

3

Tradename :

CAGE CLAMP?

Current - UL :

15 A

Operating Temperature :

-60°C ~ 100°C

Degree of protection (IP), mounted :

IP10

No. of rows :

1

Connectable conductor cross section solid-core :

0.08 - 2.5

Current :

15 A

Nominal voltage :

630V

Features :

-

Manufacturer :

Wago

Terminal Pitch (mm) :

7.5

Size :

28-12 AWG

Product Status :

Active

Wire Gauge or Range - mm² :

0.08-2.5mm²

Rated current In :

12

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Nominal current (details) :

12A

Housing Color :

Light Gray

Header Orientation :

-

Package :

Box

Nominal current - rounded value :

15A

Material contact :

Other copper alloys

Housing Material :

Polyamide (PA66), Nylon 6/6

Type of electric connection :

Spring clamp connection

Current - IEC :

12A

Wire Strip Length :

8-9mm

Stripping Length :

8-9 mm

Torque - Screw :

-

AWG max. :

12

Content :

1pc(s)

Automotive :

No

Packaging :

Box

max. cross section :

2.5mm²

Contact Finish :

Tin

Case material :

PA 66

Total number of pins :

3

PPAP :

No

Voltage - UL :

600 V

Number of Levels :

1

Pins per row :

3

Product Length (mm) :

23.2

Body Orientation :

RIGHT ANGLE

Contact Mating Finish :

Tin

Pitch :

0.295 (7.50mm)

Min. cross section :

0.08mm²

Contact Tail Length :

-
