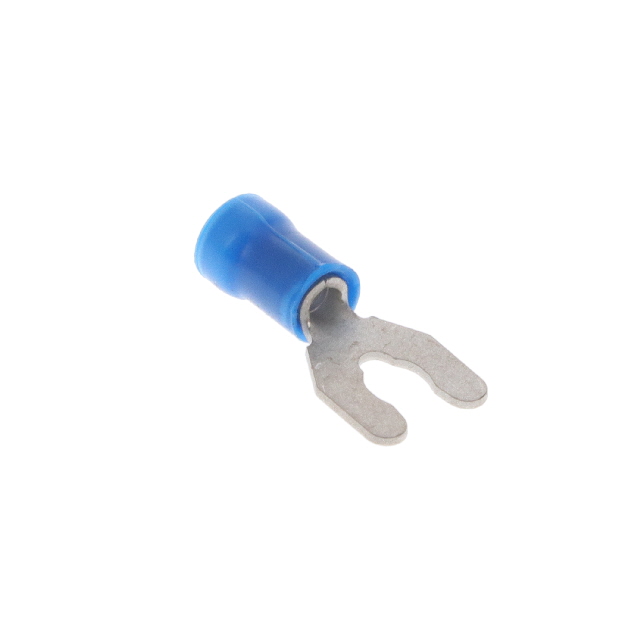

7-52956-1
Or copy the link below:
- Mfr.Part #
- 7-52956-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 14-16AWG #8 BLU
- Stock
- 935
- In Stock ：
- 935
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- Factory Lead Time :
- 19 Weeks
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Diameter - Inside :
- 4.953 mm
- Color :
- Blue
- Wire Gauge (Min) :
- 16 AWG
- Tongue Thickness :
- 790μm
- Terminal and Terminal Block Type :
- FORK TERMINAL
- Termination :
- Crimp
- RoHS Status :
- RoHS Compliant
- Insulated Wire Support :
- yes
- Wire Gauge :
- 14-16 AWG
- Mount :
- Stud
- Width - Outer Edges :
- 0.375 9.53mm
- Stud/Tab Size :
- 8 Stud
- Mounting Type :
- Free Hanging (In-Line)
- Stud Size :
- M4
- Length - Ring Center to Termination :
- 0.281 7.14mm
- Stud Diameter :
- 4.17 mm
- Feature :
- Serrated Termination
- Contact Material :
- Brass
- Lead Free :
- Not Applicable
- Terminal Type :
- Spring, Snap
- Published :
- 1999
- Material - Insulation :
- Poly-Vinyl Chloride (PVC)
- Contact Finish :
- Tin
- HTS Code :
- 8536.90.40.00
- Wire/Cable Diameter :
- 4.9022 mm
- Length :
- 22.1488mm
- ECCN Code :
- EAR99
- Wire Gauge (Max) :
- 14 AWG
- Length - Overall :
- 0.872 22.15mm
- Length - Termination :
- 0.416 10.57mm
- ELV :
- Compliant
- Gender :
- FEMALE
- Heavy Duty :
- No
- Wire Cross Section :
- 2.62 mm2
- Insulation Diameter :
- 0.118 ~ 0.193 (3.00mm ~ 4.90mm)
- Tongue Inside Opening :
- 0.164 (4.17mm)
- Series :
- Plasti-Grip
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation :
- Insulated
- Voltage - Rated AC :
- 600V
- REACH SVHC :
- No SVHC
- Datasheets
- 7-52956-1
