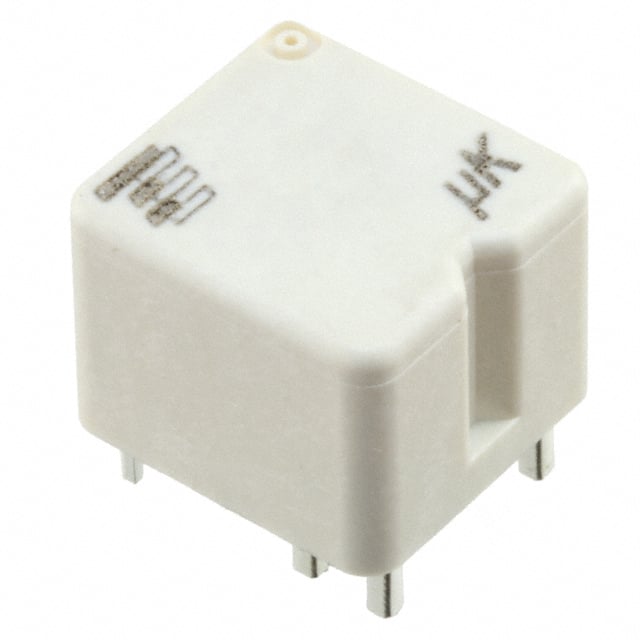

7-1414967-8
Or copy the link below:
- Mfr.Part #
- 7-1414967-8
- Manufacturer
- TE Connectivity Raychem Cable Protection
- Package / Case
- Datasheet
- Download
- Description
- RELAY AUTO SPDT 30A 10V
- Stock
- 460
- In Stock ：
- 460
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Raychem Cable Protection
- Product Category :
- Automotive Relays
- ELV :
- Compliant
- Length :
- 11.9888mm
- Contact Form :
- SPDT (1 Form C)
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Must Operate Voltage :
- 5.7VDC
- Mounting Type :
- Through Hole
- Published :
- 2016
- Coil Power :
- 552mW
- Contact Rating (Current) :
- 30A
- Min Operating Temperature :
- -40°C
- Release Time :
- 1.5ms
- Must Release Voltage :
- 1.25VDC
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Coil Type :
- Non Latching
- Contact Material :
- Silver Tin Oxide (AgSnO)
- Coil Voltage :
- 10VDC
- Series :
- Micro Relay K
- Coil Voltage (DC) :
- 10V
- Current Rating :
- 20A
- Mount :
- Through Hole
- Switching Voltage :
- 10VDC - Nom
- Packaging :
- Bulk
- Height :
- 10.2mm
- Operate Time :
- 3ms
- RoHS Status :
- RoHS Compliant
- Termination Style :
- PC Pin
- Max Operating Temperature :
- 105°C
- Operating Temperature :
- -40°C~105°C
- Coil Resistance :
- 181Ohms
- Termination :
- PCB
- Weight :
- 3.997283g
- Relay Type :
- Relay
- Factory Lead Time :
- 13 Weeks
- Throw Configuration :
- SPDT
- Coil Current :
- 55mA
- Width :
- 12.9032mm
- Datasheets
- 7-1414967-8
