6STD09SAM99B50X
Or copy the link below:
- Mfr.Part #
- 6STD09SAM99B50X
- Manufacturer
- CONEC
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 9POS PNL MNT
- Stock
- 19,071
- In Stock ：
- 19,071
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CONEC
- Product Category :
- D-Sub Connector Assemblies
- Body Length or Diameter :
- 1.551 inch
- Ratings :
- Dust Tight, IP67, Waterproof
- Shell Finish :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness :
- 8.00μin 0.203μm
- RoHS Status :
- RoHS Compliant
- Mounting Type :
- Panel Mount
- Contact Material :
- COPPER ALLOY
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Mount :
- Panel
- Color :
- Black
- Number of Positions :
- 9
- Reliability :
- COMMERCIAL
- Current Rating :
- 7.5A
- Voltage - Rated :
- 125V
- Housing Material :
- Glass
- Dielectric Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Type :
- Signal
- Wire Gauge :
- 20 AWG
- Contact Finish :
- Gold
- Published :
- 2009
- Number of Rows :
- 2
- Connector Type :
- Receptacle, Female Sockets
- Total Number of Contacts :
- 9
- Shell Material, Finish :
- Copper Alloy, Tin Plated
- Operating Temperature :
- -25°C~105°C
- Shell Size, Connector Layout :
- 1 DE E
- Termination :
- Solder Cup
- Contact Resistance :
- 10MOhm
- Contact Form :
- Machined
- Packaging :
- Tray
- Reference Standard :
- UL
- Flange Feature :
- Cable Side (4-40); Mating Side (4-40)
- Body Breadth :
- 0.831 inch
- Connector Style :
- D-Sub
- Datasheets
- 6STD09SAM99B50X

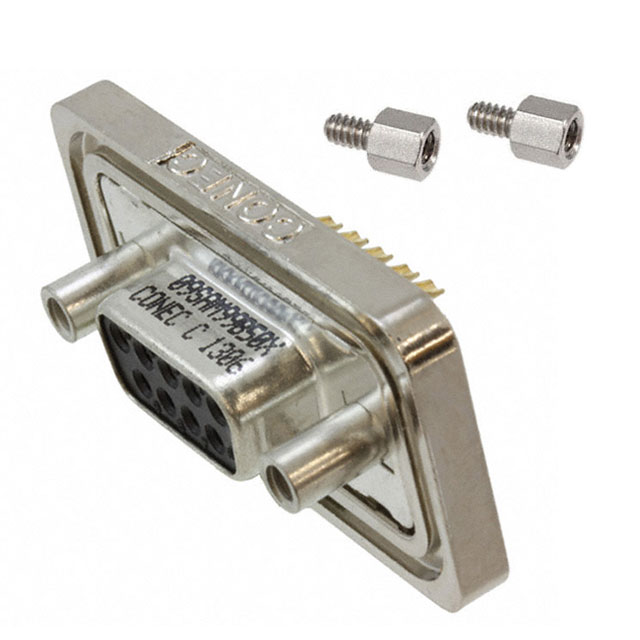

D-Sub Receptacle, Female Sockets 9-Position Signal Solder Cup 1 DE E Panel Mount Copper Alloy Gold Copper Alloy, Tin Plated
6STD09SAM99B50X Overview
This product is packaged in a Receptacle, Female Sockets box.There is a Panel Mount mounting type for the device.This product is packaged in a case marked Tray.There is a Panel mount on the part.This device operates at a temperature of -25°C~105°C.
6STD09SAM99B50X Features
6STD09SAM99B50X Applications
There are a lot of Conec
6STD09SAM99B50X D-Sub Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
