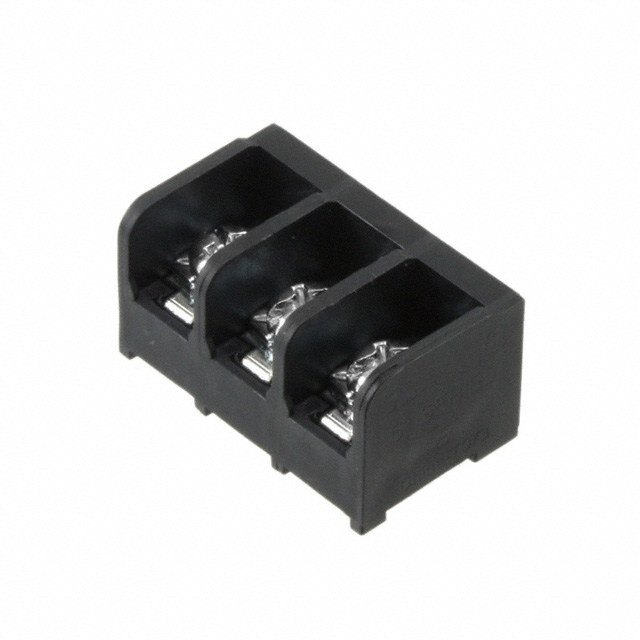

6PCV-03-006
Or copy the link below:
- Mfr.Part #
- 6PCV-03-006
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN BARRIER STRIP 3CIRC 0.375"
- Stock
- 45,368
- In Stock ：
- 45,368
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Barrier Blocks
- Wire/Cable Gauge :
- 22 AWG
- Published :
- 2007
- Contact Material :
- Copper
- Radiation Hardening :
- No
- RoHS Status :
- RoHS Compliant
- Length :
- 30.12mm
- Number of Wire Entries :
- 3
- Width :
- 17.78mm
- Max Current Rating :
- 25A
- Terminal Block Type :
- Barrier Block
- Series :
- #6, Buchanan
- Packaging :
- Bulk
- Orientation :
- Straight
- Barrier Type :
- 3 Wall (Tri)
- Pitch :
- 0.375 9.53mm
- Material - Insulation :
- Thermoplastic
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Voltage - Rated :
- 300V
- Housing Material :
- Thermoplastic
- Lead Free :
- Lead Free
- REACH SVHC :
- Unknown
- Number of Positions :
- 3
- Wire Gauge (Max) :
- 22 AWG
- Approval Agency :
- CSA, UL
- Number of Rows :
- 1
- Factory Lead Time :
- 4 Weeks
- Number of Circuits :
- 3
- Bottom Termination :
- PC Pin
- Number of Poles :
- 3
- Terminal Screw Material :
- Steel
- Current Rating :
- 5A
- Terminal Screw Finish :
- Zinc, Clear Chromate
- Number of Contacts :
- 3
- Top Termination :
- Screws
- Operating Temperature :
- 105°C
- Height :
- 15.875mm
- Termination :
- Solder
- Mount :
- Through Hole
- Mounting Type :
- Through Hole
- Number of Levels :
- 1
- Terminal Material :
- Steel
- Flammability Rating :
- UL94 V-0
- Material Flammability Rating :
- UL94 V-0
- Wire Gauge :
- 12-22 AWG
- ELV :
- Compliant
- Contact Plating :
- Tin
- Depth :
- 17.78mm
- Connector Type :
- Terminal Block
- Current Rating (Amps) :
- 25A
- Max Operating Temperature :
- 105°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Color :
- Black
- Wire Gauge (Min) :
- 12 AWG
- Voltage :
- 300V
- Color :
- Black
- Datasheets
- 6PCV-03-006
Bulk 1 Rows Through Hole Barrier Block PC Pin #6, Buchanan 0.375 9.53mm 3 Wall (Tri) 3 Circuits Thermoplastic
6PCV-03-006 Overview
A Terminal Block package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the #6, Buchanan Series of products.Whenever it's below 105°C, it's best to use it.Through Hole mounts the part.3 circuits make up the part.There is no operating temperature for the device.
6PCV-03-006 Features
#6, Buchanan series
6PCV-03-006 Applications
There are a lot of TE Connectivity AMP Connectors
6PCV-03-006 Terminal Blocks applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
