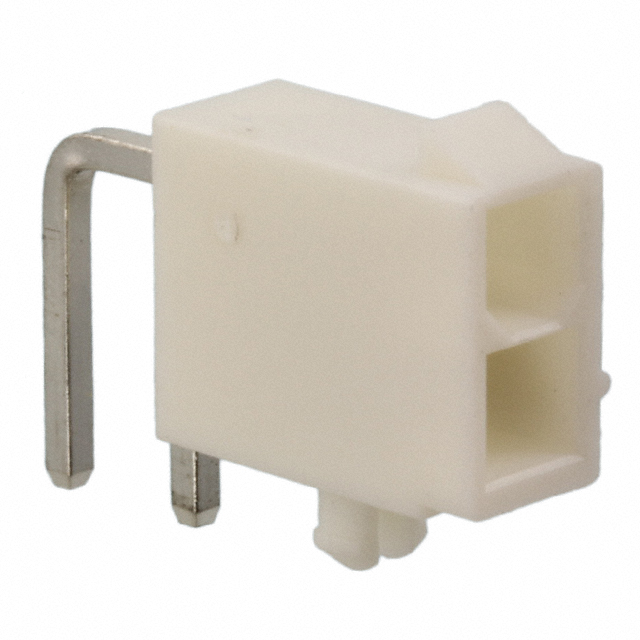

649002227222
Or copy the link below:
- Mfr.Part #
- 649002227222
- Manufacturer
- Würth Elektronik
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 2POS
- Stock
- 105
- In Stock ：
- 105
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Würth Elektronik
- Product Category :
- Headers, Male Pins
- REACH SVHC :
- Unknown
- Contact Plating :
- Tin
- Number of Positions Loaded :
- All
- Operating Temperature :
- -40°C~105°C
- Insulation Color :
- White
- Style :
- Board to Cable/Wire
- Fastening Type :
- Locking Ramp
- Contact Finish - Post :
- Tin
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Housing Material :
- Nylon
- Contact Gender :
- Male
- Number of Pins :
- 2
- Factory Lead Time :
- 16 Weeks
- Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole, Right Angle
- Height :
- 12.8mm
- Insulation :
- Insulated
- Contact Resistance :
- 10MOhm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch :
- 4.2mm
- Length :
- 5.4mm
- Current Rating :
- 9A
- Gender :
- Male
- Feature :
- Board Lock
- Operating Supply Voltage :
- 600V
- Contact Type :
- Male Pin
- Packaging :
- Tray
- Current Rating (Amps) :
- 9A
- Number of Rows :
- 2
- Number of Positions :
- 2
- Voltage - Rated :
- 600V
- Contact Finish - Mating :
- Tin
- Contact Shape :
- Square
- Number of Contacts :
- 2
- Insulation Resistance :
- 1GOhm
- Width :
- 5.5mm
- Max Operating Temperature :
- 105°C
- Series :
- WR-MPC4
- Termination :
- Solder
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Lead Pitch :
- 4.2mm
- Material Flammability Rating :
- UL94 V-0
- Insulation Height :
- 0.394 10.00mm
- Min Operating Temperature :
- -40°C
- Contact Material :
- Nickel
- Contact Length - Post :
- 0.138 3.50mm
- Connector Type :
- Header
- Color :
- White
- Shrouding :
- Shrouded - 4 Wall
- Mount :
- Through Hole
- RoHS Status :
- ROHS3 Compliant
- Datasheets
- 649002227222
649002227222 Documents
WR-MPC4 Series 2-Row Header Solder Nickel Tray Through Hole, Right Angle Tin Polyamide (PA66), Nylon 6/6 2-Position Board to Cable/Wire 0.394 10.00mm Height
649002227222 Overview
Packaging for this item is Header.There is a mounting type of Through Hole, Right Angle for this device.It is necessary to use a Tray case for packaging the product.This product is part of the WR-MPC4 Series.Devices with 2 pins are available.You should use it when it's below 105°C.A minimum temperature of -40°C is required for the operation of this device.In many ways, its Board Lock feature makes it more powerful.Through Hole is used to mount the part.The operating supply voltage of this memory is 600V.In this case, the device operates at -40°C~105°C Operating Temperature.
649002227222 Features
WR-MPC4 series
649002227222 Applications
There are a lot of Würth Elektronik
649002227222 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
