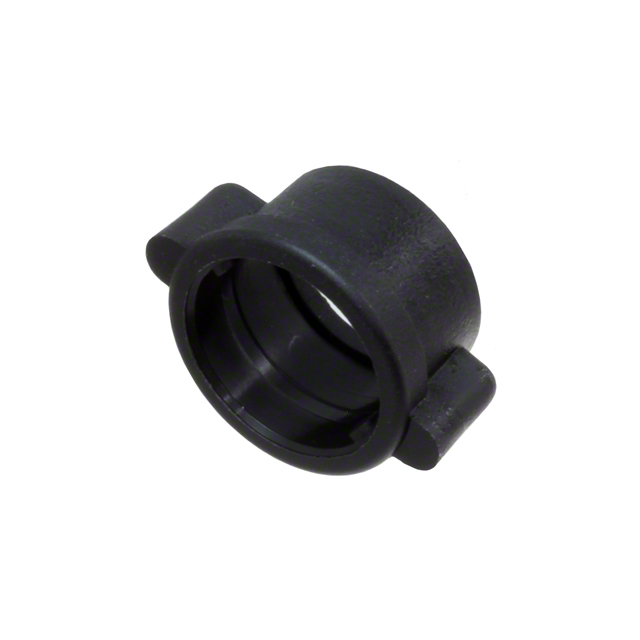

6482

Manufacturer :

Switchcraft / Conxall

Product Category :

Circular Connector Accessories

Body Length or Diameter :

1.89 inch

Color :

Black

Mating Contact Pitch :

0.079 inch

Operating Temperature (Max) :

105°C

Durability :

50 Cycles

Operating Temperature (Min) :

-40°C

Contact Finish - Mating :

AU ON NI

Rated Current (Signal) :

2A

Series :

Mini-Con-X®

Number of Conductors :

ONE

Number Of PCB Rows :

2

Reference Standard :

UL

Accessory Type :

Coupling Nut

Mating Contact Row Spacing :

0.079 inch

Contact Gender :

FEMALE

PCB Contact Pattern :

RECTANGULAR

Termination Type :

Surface Mount

Body Breadth :

0.157 inch

Withdrawl Force-Min :

.1946 N

Total Number of Contacts :

48

PCB Contact Row Spacing :

5.1054 mm

Factory Lead Time :

8 Weeks

Insertion Force-Max :

2.9468 N

Body Depth :

0.087 inch

Plating Thickness :

30μin

Mounting Style :

Straight

Number of Rows :

2

Polarization Key :

POLARIZED HOUSING

Material :

Nylon

Insulation Resistance :

1000000000Ohm

Mounting Type :

BOARD

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Board Mounting Option :

PEG

RoHS Status :

ROHS3 Compliant

Connector Type :

BOARD CONNECTOR

Reliability :

COMMERCIAL

Contact Pattern :

RECTANGULAR

Mounting Option 1 :

LOCKING

Reach Compliance Code :

Unknown

Feature :

Winged

Dielectric Withstanding Voltage :

500VAC V

Contact Style :

SQ PIN-SKT

Contact Resistance :

20mOhm

Terminal Pitch :

2.0066mm
