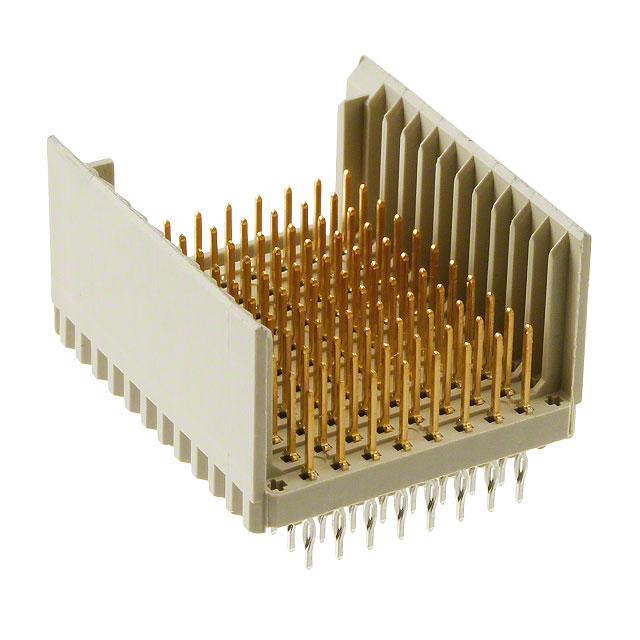

646457-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Hard Metric, Standard

Mixed Contacts :

No

DIN Conformance :

No

Published :

2005

Gender :

Male

REACH SVHC :

Unknown

Feature :

Board Guide

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Reference Standard :

UL

Mounting Type :

Through Hole

MIL Conformance :

No

Orientation :

Vertical

Insulator Color :

Gray

Housing Material :

Polyester

UL Flammability Code :

94V-0

Housing Color :

Grey

Contact Material :

Bronze

Contact Style :

SQ PIN-SKT

Make First / Break Last :

No

Factory Lead Time :

23 Weeks

Contact Pattern :

RECTANGULAR

Connector Style :

F 11

Circuit Application :

Signal

Operating Temperature :

-55°C~125°C

Packaging :

Tube

Dielectric Withstanding Voltage :

750VAC V

Body/Shell Style :

Receptacle

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Termination :

Press-Fit

Number of Conductors :

ONE

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

PCB Contact Pattern :

RECTANGULAR

Number of Rows :

8

ELV :

Non-Compliant

Depth :

21.4mm

Total Number of Contacts :

88

Current Rating :

1.5A

Withdrawl Force-Min :

.139 N

Pitch :

0.079 2.00mm

Polarization Key :

POLARIZED HOUSING

Contact Finish :

Gold

Voltage - Rated :

750Vrms

Row Spacing :

2 mm

Lead Free :

Not Applicable

Number of Columns :

11

Shielding :

Unshielded

Number of Positions :

88

IEC Conformance :

No

Contact Finish Thickness :

30.0μin 0.76μm

Mount :

Through Hole

Reliability :

COMMERCIAL

Number of Positions Loaded :

All

Option :

GENERAL PURPOSE

RoHS Status :

Non-RoHS Compliant

Lead Pitch :

2mm

Plating Thickness :

760 nm

Filter Feature :

No

Connector Type :

Header, Male Pins

Number Of PCB Rows :

8

Length :

24.9mm

JESD-609 Code :

e0

Series :

Z-PACK

Flammability Rating :

UL94 V-0

Connector Usage :

Backplane

Durability :

250 Cycles

Insulation Resistance :

1000000000Ohm

ECCN Code :

EAR99

Max Current Rating :

1.5A
