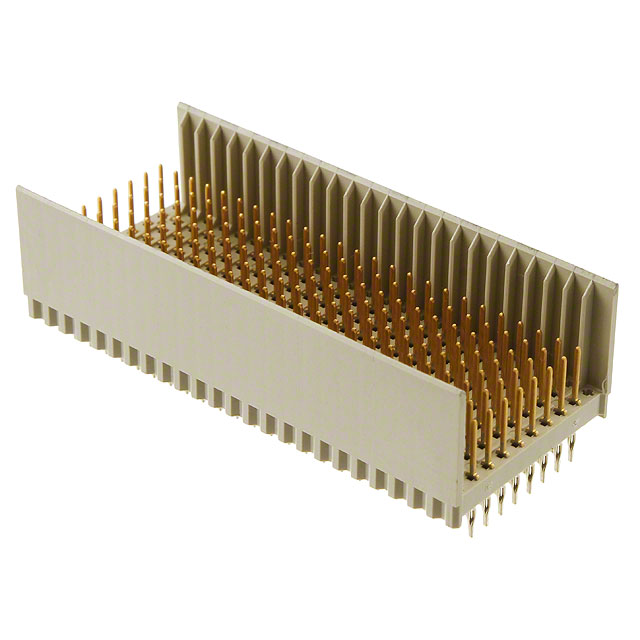

646347-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Hard Metric, Standard

Packaging :

Tube

PCB Contact Pattern :

RECTANGULAR

Max Current Rating :

1.5A

Termination :

Press-Fit

Housing Material :

Polyester

Current Rating :

1.5A

ECCN Code :

EAR99

Connector Type :

Header, Male Pins

Number of Positions :

200

Published :

1999

Insulator Color :

Gray

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Polarization Key :

POLARIZED KEY

RoHS Status :

Non-RoHS Compliant

Number of Columns :

25

Gender :

Male

Connector Usage :

Backplane

Mixed Contacts :

No

Orientation :

Vertical

Voltage - Rated :

750Vrms

Body Length or Diameter :

1.965 inch

Number of Rows :

8

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Conductors :

ONE

Plating Thickness :

760 nm

DIN Conformance :

No

UL Flammability Code :

94V-0

Flammability Rating :

UL94 V-0

Connector Style :

E 25

Operating Temperature :

-55°C~125°C

Number Of PCB Rows :

8

Reference Standard :

UL

Number of Positions Loaded :

All

Contact Pattern :

RECTANGULAR

Series :

Z-PACK

Pitch :

0.079 2.00mm

Filter Feature :

No

Mount :

Through Hole

Withdrawl Force-Min :

.139 N

Body/Shell Style :

PLUG

ELV :

Non-Compliant

Contact Resistance :

50mOhm

Circuit Application :

Signal

Contact Finish Thickness :

30.0μin 0.76μm

Contact Finish :

Gold

Lead Pitch :

2mm

Mating Contact Row Spacing :

0.079 inch

Max Voltage Rating (AC) :

750V

IEC Conformance :

No

Contact Material :

Bronze

PCB Contact Row Spacing :

2.0066 mm

MIL Conformance :

No

Housing Color :

Grey

JESD-609 Code :

e0

Body Depth :

0.53 inch

Mounting Type :

Through Hole

Insulation Resistance :

1000000000Ohm

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Lead Free :

Not Applicable

Dielectric Withstanding Voltage :

750VAC V

Shielding :

Unshielded

Reliability :

COMMERCIAL

Length - Termination :

0.147 inch

Factory Lead Time :

19 Weeks

Option :

GENERAL PURPOSE

Total Number of Contacts :

200

Contact Style :

SQ PIN-SKT

Make First / Break Last :

No
