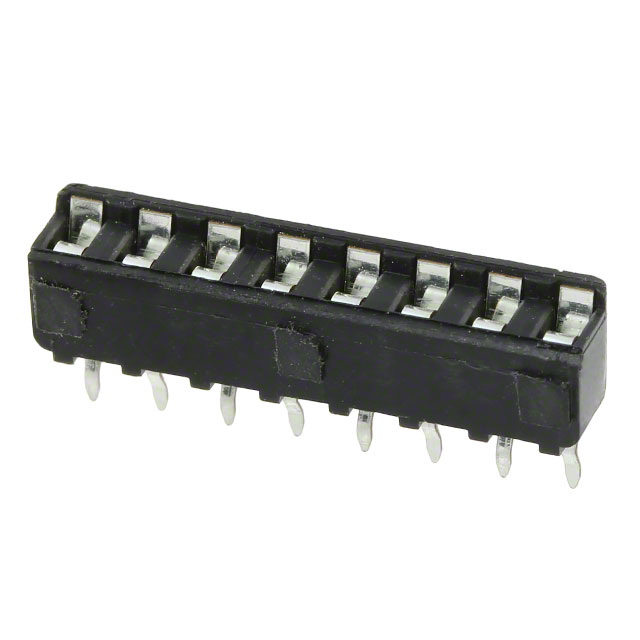

643640-8
Or copy the link below:
- Mfr.Part #
- 643640-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SOCKET SIP 8POS TIN
- Stock
- 29,285
- In Stock ：
- 29,285
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- IC Sockets
- Number of Positions or Pins (Grid) :
- 8 (1 x 8)
- Contact Material - Mating :
- Phosphor Bronze
- Type :
- SIP
- Pitch - Mating :
- 0.100 2.54mm
- PCB Contact Pattern :
- RECTANGULAR
- Orientation :
- Straight
- Contact Finish - Mating :
- Tin
- Feature :
- Closed Frame
- Insulation Material :
- Thermoplastic
- Termination Post Length :
- 0.130 3.30mm
- Terminal Pitch :
- 2.54mm
- Termination :
- Solder
- ELV :
- Compliant
- Lead Length :
- 3.302mm
- Depth :
- 3.91mm
- Contact Style :
- DUAL PRONG
- Pbfree Code :
- yes
- Contact Material :
- Bronze
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole
- Contact Resistance :
- 20mOhm
- Material Flammability Rating :
- UL94 V-0
- Flammability Rating :
- UL94 V-0
- Additional Feature :
- DIPLOMATE, UL 94V-0
- Published :
- 2007
- Operating Temperature :
- -55°C~105°C
- Series :
- Diplomate DL
- Length :
- 20.19mm
- ECCN Code :
- EAR99
- Radiation Hardening :
- No
- Packaging :
- Tube
- Number of Rows :
- 1
- Pitch - Post :
- 0.100 2.54mm
- Housing Material :
- Thermoplastic, Glass Filled
- Contact Material - Post :
- Phosphor Bronze
- JESD-609 Code :
- e3
- Number of Contacts :
- 8
- Color :
- Black
- Insulation Resistance :
- 5GOhm
- Gender :
- FEMALE
- Mount :
- Through Hole
- RoHS Status :
- RoHS Compliant
- Datasheets
- 643640-8
