641937-2

Share

Or copy the link below:

Mfr.Part #
641937-2
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN HEADER VERT 3POS 3.96MM
Stock
3,522
In Stock :
3,522

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Male Pins
Number of Power Positions :
3
DIN Conformance :
No
Height :
10.8mm
MIL Conformance :
No
Contact Shape :
Square
Published :
2008
Operating Temperature :
-55°C~105°C
Contact Current Rating :
7A
Mount :
Through Hole
Number of Positions Loaded :
2
Orientation :
Vertical
Applications :
General Purpose, Industrial
Number of Signal Positions :
0
Connector Type :
Header
Filter Feature :
No
PCB Thickness :
3.048mm
ECCN Code :
EAR99
Circuit Application :
Power
JESD-609 Code :
e3
Style :
Board to Cable/Wire
Series :
MTA-156
Pitch - Mating :
0.156 3.96mm
Number of Conductors :
ONE
Lifecycle Status :
ACTIVE (Last Updated: 3 days ago)
Insulation Height :
0.425 10.80mm
Fastening Type :
Friction Lock
Underplate Material :
Nickel
Contact Finish - Mating :
Tin
Shrouding :
Shrouded - 1 Wall
Length :
11.89mm
Mixed Contacts :
No
PCB Contact Pattern :
RECTANGULAR
Voltage - Rated AC :
600V
Insulation Material :
Thermoplastic, Glass Filled
Termination :
Solder
Housing Color :
Natural
Flammability Rating :
UL94 V-0
Sealable :
No
RoHS Status :
RoHS Compliant
Operating Supply Voltage :
600V
Contact Length - Post :
0.125 3.18mm
ELV :
Compliant
Contact Gender :
Male
Overall Contact Length :
0.650 16.51mm
Contact Type :
Male Pin
Mating Post Length :
10.16mm
Number of Rows :
1
Pbfree Code :
yes
IEC Conformance :
No
Housing Material :
Polyester
Packaging :
Bulk
Reliability :
COMMERCIAL
Approval Agency :
CSA
Max Voltage Rating (AC) :
600V
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Current Rating :
7A
Contact Length - Mating :
0.400 10.16mm
Mounting Type :
Through Hole
Lead Length :
3.18mm
Material Flammability Rating :
UL94 V-0
Contact Material :
COPPER ALLOY
Voltage - Rated :
600VAC
Number Of PCB Rows :
1
Polarization Key :
POLARIZED HOUSING
Current Rating (Amps) :
Varies by WireGAuge
Contact Retention :
Without
Plating Thickness :
2.54μm
Factory Lead Time :
17 Weeks
Datasheets
641937-2
Introducing Headers, Male Pins TE Connectivity AMP Connectors 641937-2 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-55°C~105°C, Mounting Type:Through Hole, 641937-2 pinout, 641937-2 datasheet PDF, 641937-2 amp .Beyond Headers, Male Pins TE Connectivity AMP Connectors 641937-2 ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

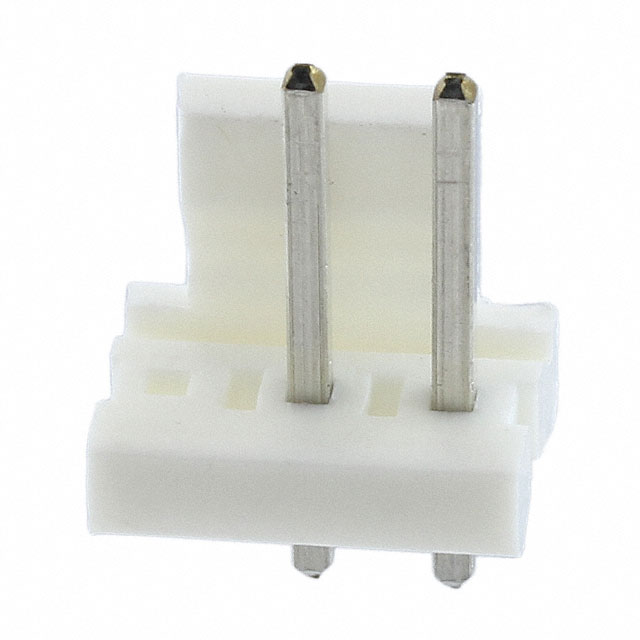

TE Connectivity AMP Connectors 641937-2


MTA-156 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Tin Thermoplastic, Glass Filled Board to Cable/Wire 0.425 10.80mm Height

641937-2 Overview


Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the MTA-156 Series.There are a variety of possible applications for this device, including General Purpose, Industrial.There is a mounting hole at Through Hole.It runs on 600V voltage.Devices operate at -55°C~105°C operating temperatures.

641937-2 Features


MTA-156 series


641937-2 Applications


There are a lot of TE Connectivity AMP Connectors
641937-2 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
