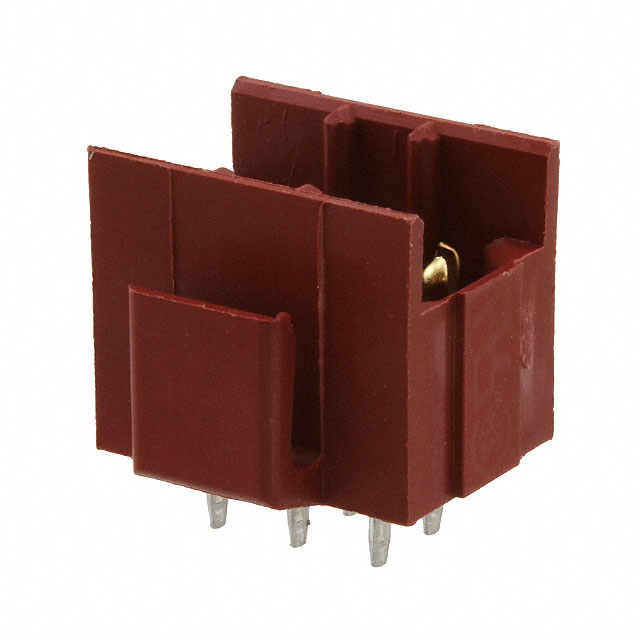

640500-6

Share

Or copy the link below:

Mfr.Part #
640500-6
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN HEADER VERT 6POS 4.2MM
Stock
7,304
In Stock :
7,304

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Male Pins
Filter Feature :
No
Number of Positions :
6
Sealable :
No
Length :
15.748mm
Housing Material :
Nylon
MIL Conformance :
No
Number of Rows :
2
Color :
Red
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Shrouding :
Shrouded - 4 Wall
Mixed Contacts :
No
JESD-609 Code :
e0
Insulation Material :
Polyamide (PA), Nylon
Height :
13.46mm
Circuit Application :
Power
Contact Finish Thickness - Mating :
30.0μin 0.76μm
Contact Material :
Phosphor Bronze
Width :
11.55mm
Current Rating :
9A
Depth :
15.74mm
Voltage - Rated :
250VAC
Number of Positions Loaded :
All
Contact Current Rating :
9A
Connector Type :
Header
Material :
Bronze
Approval Agency :
CSA
Published :
1999
DIN Conformance :
No
IEC Conformance :
No
Operating Temperature :
-55°C~105°C
RoHS Status :
Non-RoHS Compliant
Flammability Rating :
UL94 V-0
Lifecycle Status :
ACTIVE (Last Updated: 2 days ago)
Wire/Cable Gauge :
18 AWG
Fastening Type :
Latch Lock
Operating Supply Voltage :
250V
Orientation :
Vertical
Insulation Height :
0.531 13.50mm
Mounting Type :
Through Hole
Max Voltage Rating (AC) :
250V
Contact Shape :
Circular
Style :
Board to Cable/Wire
Material Flammability Rating :
UL94 V-0
Pitch - Mating :
0.165 4.20mm
Current Rating (Amps) :
6A
Pbfree Code :
No
Packaging :
Bulk
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
ELV :
Non-Compliant
Contact Finish Thickness - Post :
150.0μin 3.81μm
PCB Thickness :
1.6002mm
Contact Type :
Male Pin
Lead Free :
Contains Lead
Contact Length - Mating :
0.220 5.59mm
Factory Lead Time :
13 Weeks
Empty Shell :
No
Contact Finish - Mating :
Gold
UL Flammability Code :
94V-0
Applications :
GENERAL PURPOSE
Contact Length - Post :
0.180 4.57mm
Series :
MR (Miniature Rectangular)
Insulation Color :
Black, Red
Contact Finish - Post :
Tin-Lead
Mount :
Through Hole
Termination :
Solder
Row Spacing - Mating :
0.165 (4.20mm)
Datasheets
640500-6
Introducing Headers, Male Pins TE Connectivity AMP Connectors 640500-6 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-55°C~105°C, Mounting Type:Through Hole, 640500-6 pinout, 640500-6 datasheet PDF, 640500-6 amp .Beyond Headers, Male Pins TE Connectivity AMP Connectors 640500-6 ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 640500-6


MR (Miniature Rectangular) Series 2-Row Header Solder Phosphor Bronze Bulk Through Hole Gold Polyamide (PA), Nylon 6-Position Board to Cable/Wire 0.531 13.50mm Height

640500-6 Overview


The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the MR (Miniature Rectangular) Series.The device may be used for the following applications: General Purpose.It is mounted by Through Hole.Its operating supply voltage is 250V.It operates at an operating temperature of -55°C~105°C.

640500-6 Features


MR (Miniature Rectangular) series


640500-6 Applications


There are a lot of TE Connectivity AMP Connectors
640500-6 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
