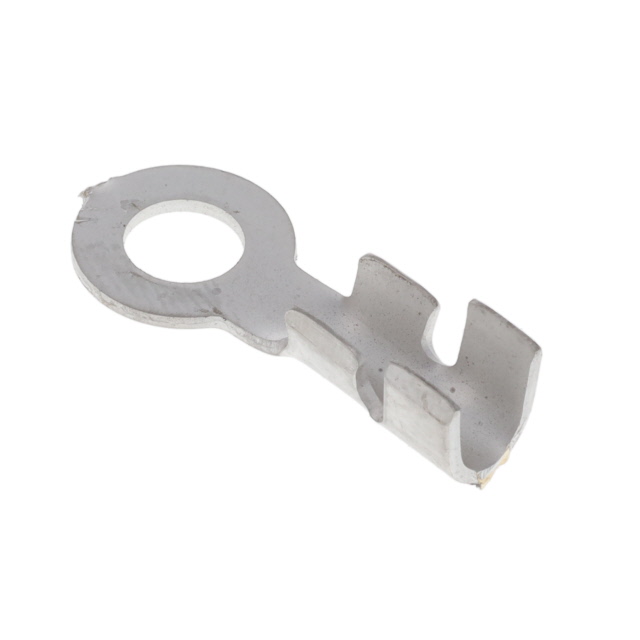

640007-3
Or copy the link below:
- Mfr.Part #
- 640007-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 14-16AWG #10
- Stock
- 21,243
- In Stock ：
- 21,243
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Number of Holes :
- 1
- Material Thickness :
- 749μm
- Stud Diameter :
- 5.003 mm
- RoHS Status :
- RoHS Compliant
- Lead Free :
- Not Applicable
- Factory Lead Time :
- 10 Weeks
- Published :
- 2004
- Stud/Tab Size :
- 10 Stud
- HTS Code :
- 8536.90.40.00
- Wire Cross Section :
- 2 mm2
- Terminal and Terminal Block Type :
- RING TERMINAL
- Insulation :
- Non-Insulated
- Mounting Type :
- Free Hanging (In-Line)
- ECCN Code :
- EAR99
- ELV :
- Compliant
- Plating :
- Tin
- Termination :
- Crimp
- Wire Gauge :
- 14-16 AWG
- Diameter - Inside :
- 2.79 mm
- Length - Overall :
- 0.873 22.17mm
- Sealable :
- No
- Wire Gauge (Min) :
- 16 AWG
- Insulation Diameter :
- 0.120 ~ 0.180 (3.05mm ~ 4.57mm)
- Tongue Thickness :
- 760μm
- Contact Material :
- Brass
- Length :
- 22.1742mm
- Width - Outer Edges :
- 0.375 9.53mm
- Thickness :
- 0.030 0.76mm
- Insulated Wire Support :
- yes
- Terminal Type :
- Circular
- Wire Gauge (Max) :
- 14 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Packaging :
- Tape and Reel (TR)
- Pbfree Code :
- yes
- Datasheets
- 640007-3
