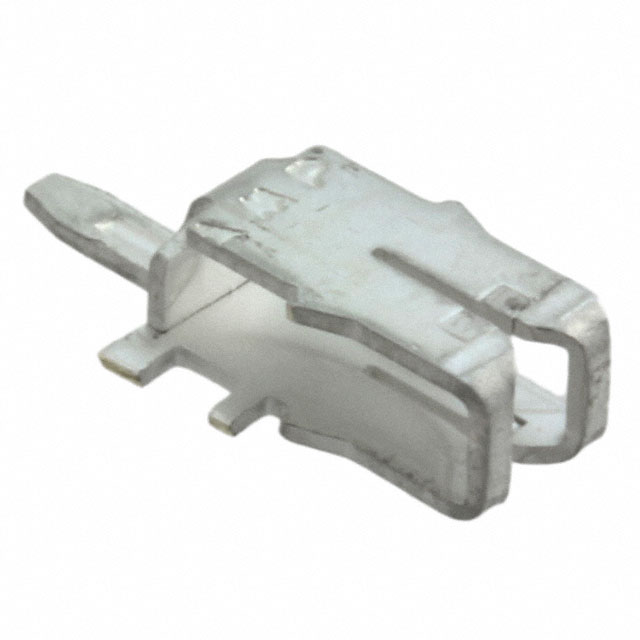

63659-1
Or copy the link below:
- Mfr.Part #
- 63659-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN MAG TERM 23-27AWG PCB
- Stock
- 280,800
- In Stock ：
- 280,800
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Magnetic Wire Connectors
- Wire Gauge (Max) :
- 27 AWG
- Plating :
- Tin
- Radiation Hardening :
- No
- ELV :
- Compliant
- Style :
- 300
- Depth :
- 4.32mm
- Lead Free :
- Lead Free
- Material Thickness :
- 406μm
- Wire Gauge :
- 23-27 AWG
- Factory Lead Time :
- 16 Weeks
- Insulation :
- Non-Insulated
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- RoHS Compliant
- ECCN Code :
- EAR99
- Gender :
- FEMALE
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Terminal and Terminal Block Type :
- WIRE TERMINAL
- Wire Gauge (Min) :
- 23 AWG
- Body Plating :
- Copper
- Material :
- Brass
- Length :
- 11.68mm
- Series :
- Mag-Mate
- Size :
- 2
- HTS Code :
- 8536.90.40.00
- Terminal Type :
- Box IDC
- Published :
- 2002
- Pbfree Code :
- yes
- Termination :
- PCB Post
- Mating Tab Width :
- 1.27mm
- Packaging :
- Tape and Reel (TR)
- Datasheets
- 63659-1
63659-1 datasheet pdf and Terminals - Magnetic Wire Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
