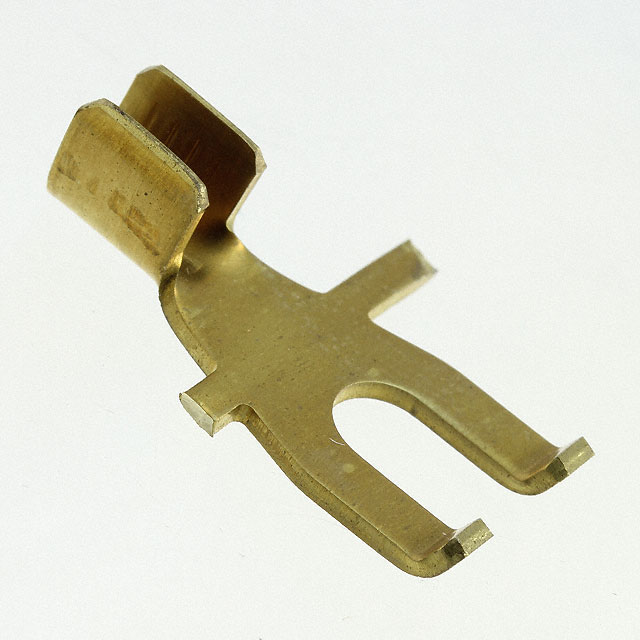

63526-1
Or copy the link below:
- Mfr.Part #
- 63526-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 10-12AWG #10
- Stock
- 14,459
- In Stock ：
- 14,459
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- Heavy Duty :
- No
- Tongue Thickness :
- 1.02mm
- ELV :
- Compliant
- Termination :
- Crimp
- Stud Diameter :
- 4.82 mm
- Lead Free :
- Not Applicable
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Length - Termination :
- 0.265 6.73mm
- RoHS Status :
- RoHS Compliant
- HTS Code :
- 8536.90.40.00
- Mount :
- Free Hanging
- Terminal Type :
- Flanged
- Length :
- 24.5872mm
- Contact Material :
- Brass
- Terminal and Terminal Block Type :
- FORK TERMINAL
- Wire Cross Section :
- 6 mm2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire Gauge (Min) :
- 10 AWG
- Stud/Tab Size :
- 10 Stud
- Packaging :
- Tape and Reel (TR)
- Factory Lead Time :
- 9 Weeks
- Mounting Type :
- Free Hanging (In-Line)
- Diameter - Inside :
- 2.54 mm
- Length - Overall :
- 0.968 24.59mm
- Tongue Inside Opening :
- 0.197 (5.00mm)
- Contact Plating :
- Unplated
- Insulation :
- Non-Insulated
- Length - Ring Center to Termination :
- 0.435 11.05mm
- ECCN Code :
- EAR99
- Wire Gauge (Max) :
- 12 AWG
- Orientation :
- Straight
- Wire Gauge :
- 10-12 AWG
- Material Thickness :
- 1.016mm
- Published :
- 1997
- Width - Outer Edges :
- 0.440 11.18mm
- Datasheets
- 63526-1
