6339082-3

Share

Or copy the link below:

Mfr.Part #
6339082-3
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN MOD JACK 8P8C R/A SHIELDED
Stock
3,007
In Stock :
3,007

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Modular Connector Jacks
Number of Contacts :
64
Reference Standard :
UL, CSA
Empty Shell :
No
Orientation :
90° Angle (Right)
Option :
GENERAL PURPOSE
Height :
27.31mm
Mounting Type :
Through Hole
Operating Temperature :
-40°C~85°C
Contact Style :
TELCOM, MODULAR
Pitch :
2.54mm
Reliability :
COMMERCIAL
Contact Finish Thickness - Mating :
1.27μm
Number of Rows :
2
Rated Current (Signal) :
1.5A
Length - Tail :
2.8448mm
MIL Conformance :
No
Contact Finish Thickness :
50.0μin 1.27μm
Tab Direction :
Up and Down
Depth :
31.1mm
Direction :
Up and Down
Body Breadth :
1.075 inch
UL Flammability Code :
94V-0
Dielectric Withstanding Voltage :
1000VAC V
Termination :
Solder
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Number of Positions/Contacts :
8p8c (RJ45, Ethernet)
Circuit Application :
Signal
Insulation Resistance :
500000000Ohm
Housing Material :
Polybutylene Terephthalate (PBT), Polyester
Published :
2010
Mounting Option 1 :
LOCKING
Durability :
750 Cycles
Keyed :
No
PCB Thickness :
1.57mm
Flammability Rating :
UL94 V-0
Mixed Contacts :
No
IEC Conformance :
No
Filter Feature :
No
Plating Thickness :
1.27μm
Contact Resistance :
30mOhm
Color :
Black
Number of Ports :
8
Length :
67.95mm
JESD-609 Code :
e3
DIN Conformance :
No
Feature :
Board Guide
Pbfree Code :
yes
LED Color :
Green - Yellow
Shell Material :
COPPER ALLOY
Packaging :
Tray
Contact Material :
Phosphor Bronze
PCB Mounting Orientation :
RIGHT ANGLE
PCB Contact Pattern :
STAGGERED
Current Rating :
200mA
Shell Finish :
TIN LEAD
Ratings :
Cat5
Lifecycle Status :
ACTIVE (Last Updated: 4 days ago)
Contact Finish :
Gold
Shielding :
Shielded, EMI Finger
Factory Lead Time :
12 Weeks
Contact Gender :
FEMALE
Connector Type :
JACK
RoHS Status :
RoHS Compliant
Datasheets
6339082-3
Introducing Modular Connector Jacks TE Connectivity AMP Connectors 6339082-3 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Operating Temperature:-40°C~85°C, 6339082-3 pinout, 6339082-3 datasheet PDF, 6339082-3 amp .Beyond Modular Connector Jacks TE Connectivity AMP Connectors 6339082-3 ,we also offer 0955016669, E5J88-00LJG2-L, SS-6488-NF, Our vast inventory has you covered. Contact us now for immediate solutions.

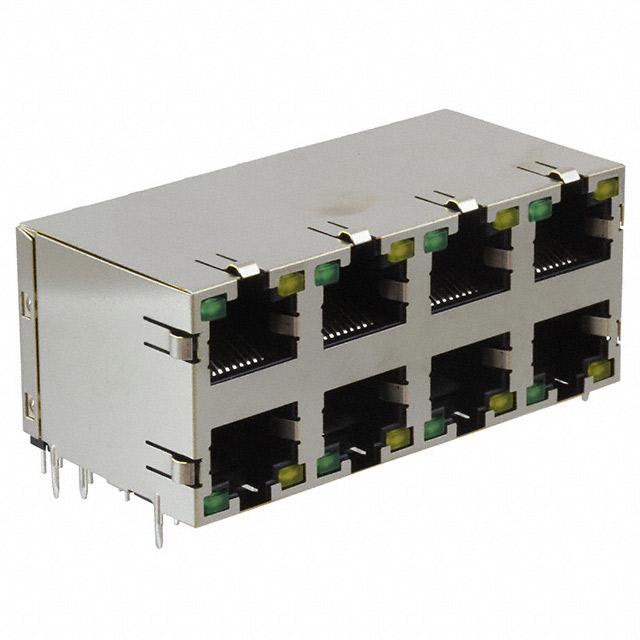

TE Connectivity AMP Connectors 6339082-3


Jack Tray Shielded, EMI Finger 8p8c (RJ45, Ethernet) 8 Port 90° Angle (Right) Solder Through Hole -40°C~85°C

6339082-3 Overview


A Jack package is included with it.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.With 8 ports, it is capable of managing a wide range of tasks.In many ways, Board Guide makes it more powerful.Operating temperature is set to -40°C~85°C.

6339082-3 Features




6339082-3 Applications


There are a lot of TE Connectivity AMP Connectors
6339082-3 Modular Connectors applications.


  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
