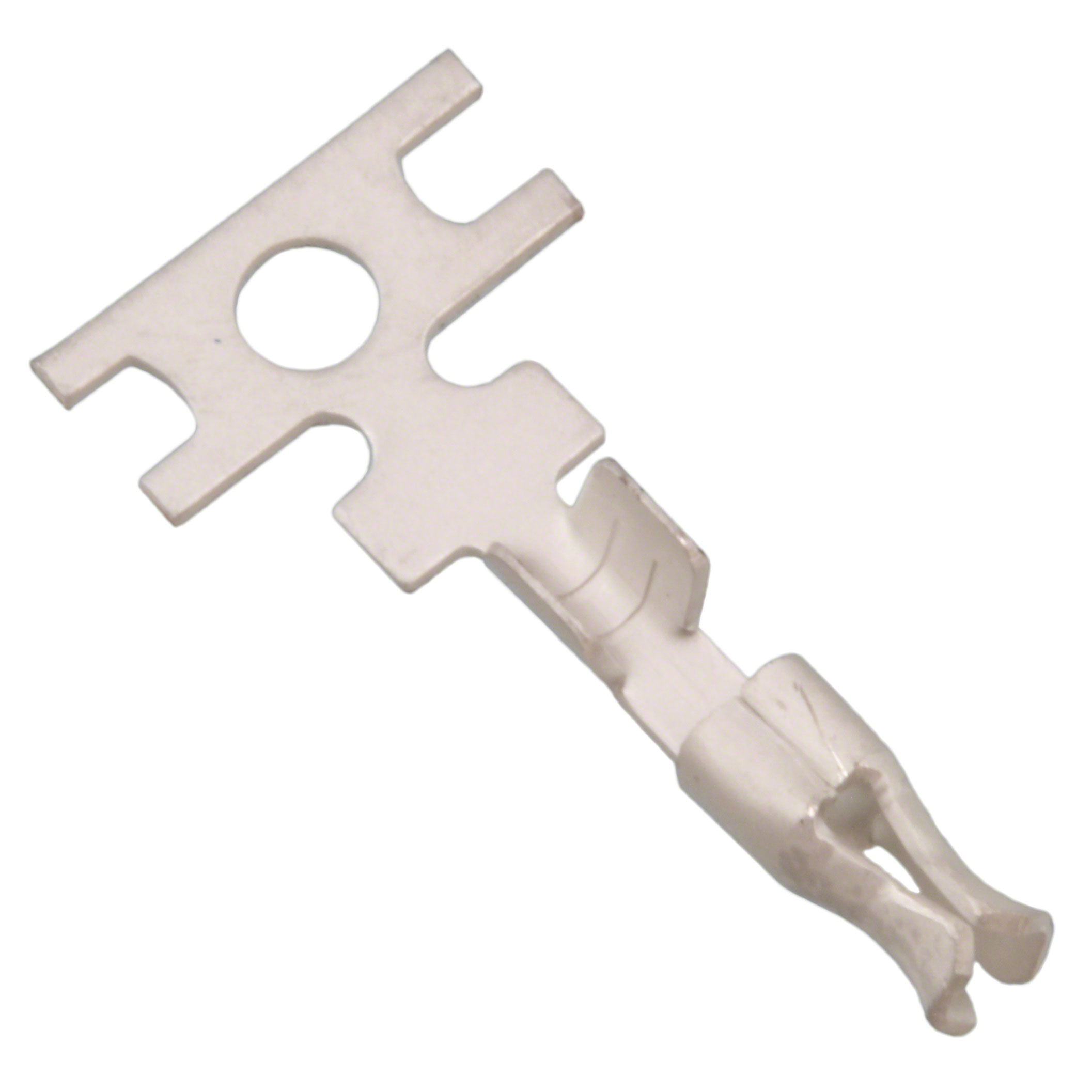

62160-1
Or copy the link below:
- Mfr.Part #
- 62160-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN TERM RCPT 20-24AWG CRIMP
- Stock
- 85
- In Stock ：
- 85
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Barrel, Bullet Connectors
- Pbfree Code :
- yes
- Factory Lead Time :
- 9 Weeks
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Heavy Duty :
- No
- Insulation :
- Non-Insulated
- Diameter - Inside :
- 880 µm
- Terminal Type :
- Female, Receptacle (Socket)
- Number of Pins :
- 109
- Connector Type :
- Connector, PCB, Signal
- Contact Finish :
- Tin
- Contact Material :
- Phosphor Bronze
- Terminal and Terminal Block Type :
- PUSH-ON TERMINAL
- Diameter - Barrel :
- 0.040 (1.02mm)
- Published :
- 2004
- Termination :
- Crimp
- Wire Cross Section :
- 0.6 mm2
- HTS Code :
- 8536.90.40.00
- Orientation :
- Straight
- Length - Overall :
- 0.360 9.14mm
- RoHS Status :
- RoHS Compliant
- Shielding :
- Unshielded
- Wire Gauge (Max) :
- 20 AWG
- Wire Gauge :
- 20-24 AWG
- Wire/Cable Type :
- Discrete
- Mount :
- CABLE
- Length :
- 9.144mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ECCN Code :
- EAR99
- Wire Gauge (Min) :
- 24 AWG
- ELV :
- Compliant
- Material Thickness :
- 320μm
- Lead Free :
- Not Applicable
- Packaging :
- Tape and Reel (TR)
- Material :
- Bronze
- Datasheets
- 62160-1
