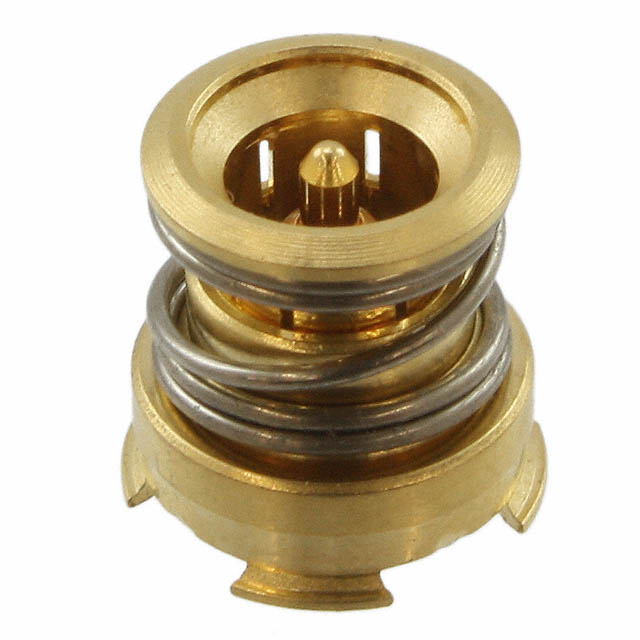

619135-1
Or copy the link below:
- Mfr.Part #
- 619135-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN COMPRESS STACKER 50 OHM SMD
- Stock
- 7,441
- In Stock ：
- 7,441
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Coaxial Connector (RF) Assemblies
- Dielectric Material :
- Polycyclohexylenedimethylene Terephthalate (PCT), Polyetheretherketone (PEEK)
- Dielectric Withstanding Voltage :
- 500VAC V
- Polarity :
- Normal
- Shield Termination :
- Solder
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Rated Current (Signal) :
- 4.8A
- Total Number of Contacts :
- 1
- RoHS Status :
- RoHS Compliant
- Orientation :
- Straight
- Mating Cycles :
- 25
- Voltage - Rated AC :
- 125V
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Mounting Type :
- Surface Mount
- Center Contact Plating :
- Gold
- Termination :
- SMD/SMT
- Insulation Resistance :
- 100MOhm
- Frequency :
- 6GHz
- Connector Style :
- Coaxial Compression
- Material :
- Bronze, Gold
- Published :
- 1995
- Gender :
- Male
- Stack Height :
- 6.65mm
- Length :
- 6.65mm
- Factory Lead Time :
- 25 Weeks
- Insertion Loss :
- 0.2dB
- Number of Ports :
- 1
- Operating Temperature :
- -40°C~125°C
- Packaging :
- Tray
- Body Material :
- Brass
- VSWR :
- 1.3
- Mount :
- PCB, Surface Mount, Through Hole
- Connector Type :
- Non-Gendered Stacker
- Working Voltage :
- 125V
- Insulation Material :
- Polychlorinated
- Body Depth :
- 0.305 inch
- Contact Termination :
- Compression
- Height :
- 6.65mm
- REACH SVHC :
- Unknown
- Number of Positions :
- 1
- Reliability :
- COMMERCIAL
- ELV :
- Compliant
- Sealable :
- No
- Impedance :
- 50Ohm
- Lead Free :
- Lead Free
- Datasheets
- 619135-1
Non-Gendered Stacker 50Ohm Tray Coaxial Compression Compression 1 Port Polycyclohexylenedimethylene Terephthalate (PCT), Polyetheretherketone (PEEK) -40°C~125°C
619135-1 Overview
The packaging contains Non-Gendered Stacker.This device is mounted in the Surface Mount position.It has been determined that a Tray case is necessary to package the product.The device has 1 ports that can be used to manage a variety of tasks.Part PCB, Surface Mount, Through Hole is mounted to the part.As a result, the device runs at -40°C~125°C Operating Temperature.This device is extremely efficient when operated at a frequency of 6GHz.
619135-1 Features
619135-1 Applications
There are a lot of TE Connectivity AMP Connectors
619135-1 Coaxial Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
