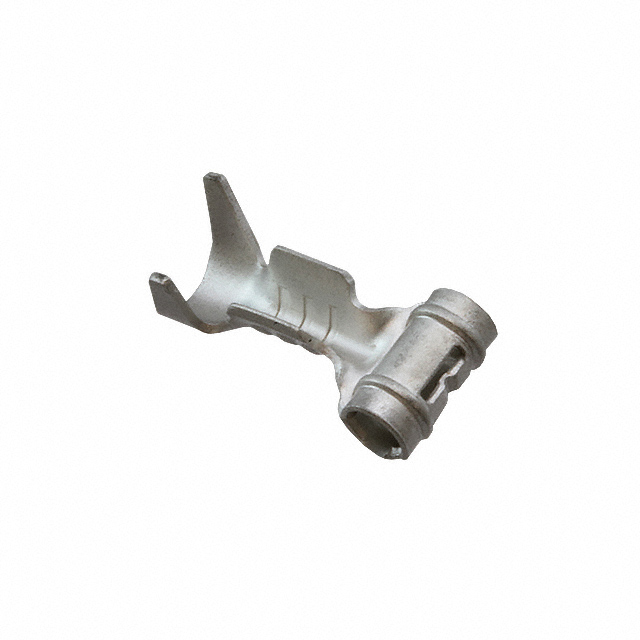

61323-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Barrel, Bullet Connectors

Connector Type :

Connector, PCB, Signal

Terminal Material :

Copper

HTS Code :

8536.90.40.00

MIL Conformance :

No

Cable Entry-Max :

0.1 inch

Wire Gauge (Max) :

24 AWG

Packaging :

Tape and Reel (TR)

Assembly Item Name :

Contact

Shielding :

Unshielded

Height :

3.07mm

Mount :

CABLE

Factory Lead Time :

12 Weeks

Termination :

Crimp

ECCN Code :

EAR99

Cable Entry-Min :

0.04 inch

IEC Conformance :

No

ELV :

Compliant

Insulation Diameter :

0.040 ~ 0.100 (1.02mm ~ 2.54mm)

Diameter - Barrel :

0.058 (1.47mm)

Terminal Type :

Female, Receptacle (Socket), Flag

Operating Temperature (Max) :

105°C

Hole Diameter :

1.57 mm

Gender :

FEMALE

Published :

1997

Length - Barrel :

0.168 4.27mm

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Lead Free :

Not Applicable

Contact Material :

BERYLLIUM COPPER

Insulation :

Non-Insulated

DIN Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

RoHS Compliant

Connector Support Type :

CONNECTOR ACCESSORY

Wire Gauge :

20-24 AWG

Contact Finish :

Tin

Depth :

4.27mm

Orientation :

Straight

Length :

8.51mm

Wire Gauge (Min) :

20 AWG

Operating Temperature (Min) :

-55°C

Insulated Wire Support :

yes
