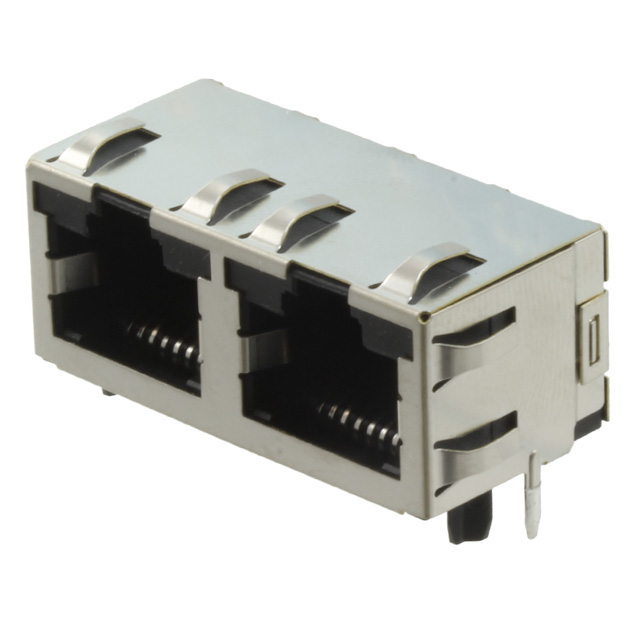

6116522-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Modular Connector Jacks

Feature :

Board Guide

Published :

2011

Moisture Sensitivity Level (MSL) :

2 (1 Year)

Housing Material :

Thermoplastic

Contact Material :

Phosphor Bronze

Contact Finish Thickness :

50.0μin 1.27μm

Dielectric Withstanding Voltage :

900VAC V

Durability :

750 Cycles

Shell Finish :

Tin

Body Breadth :

0.55 inch

Shell Material :

COPPER-ZINC ALLOY

Width :

33.27mm

Operating Temperature :

-40°C~85°C

Plating Thickness :

50μin

Length :

33.27mm

Orientation :

90° Angle (Right)

DIN Conformance :

No

Contact Finish Thickness - Mating :

1.27μm

Depth :

15.75mm

Factory Lead Time :

25 Weeks

Tab Direction :

UP

Gender :

FEMALE

Circuit Application :

Signal

Number of Contacts :

16

Mounting Type :

Through Hole

Contact Finish :

Gold

Number of Rows :

1

Reliability :

COMMERCIAL

Connector Type :

JACK

Packaging :

Tray

Pitch :

2.03mm

IEC Conformance :

No

Contact Style :

TELCOM, MODULAR

Mixed Contacts :

No

Keyed :

No

ELV :

Compliant

Reference Standard :

UL, CSA

RoHS Status :

RoHS Compliant

PCB Contact Pattern :

STAGGERED

Number of Ports :

2

Current Rating :

1.5A

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Length - Tail :

2.54mm

Number of Positions :

8

UL Flammability Code :

94V-0

Empty Shell :

No

Flammability Rating :

UL94 V-0

Option :

GENERAL PURPOSE

Height :

13.35mm

MIL Conformance :

No

Number of Positions/Contacts :

8p8c (RJ45, Ethernet)

LED Color :

Does Not Contain LED

Filter Feature :

No

Preloaded :

yes

Shielding :

Shielded, EMI Finger

Ratings :

Cat5

Termination :

Solder

Max Voltage Rating (AC) :

150V

Color :

Black

Insulation Resistance :

500000000Ohm

Mount :

Through Hole
