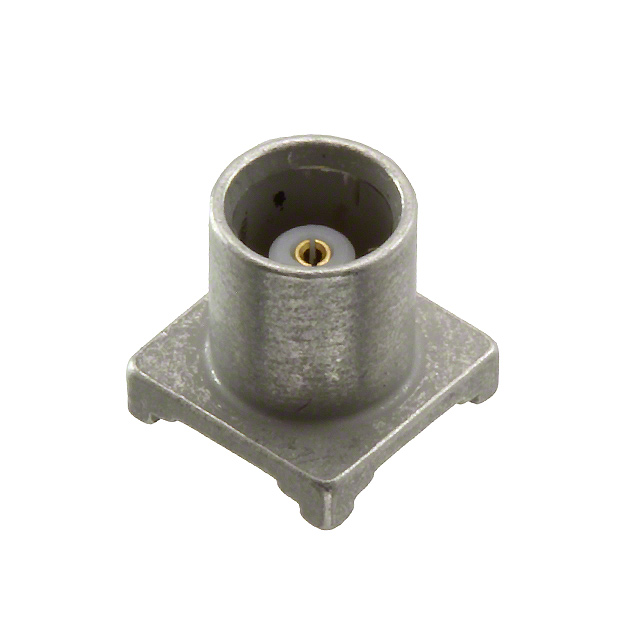

6061002-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Coaxial Connector (RF) Assemblies

Body Style :

Straight

Body/Shell Style :

Receptacle

Factory Lead Time :

13 Weeks

Contact Material :

BERYLLIUM COPPER

Gender :

Receptacle

Operating Temperature :

-65 to 105 °C

Connector Type :

RF MCX CONNECTOR

Cable Type :

-

ECCN Code :

EAR99

IEC Conformance :

No

Dielectric Withstanding Voltage :

1400VAC V

Product Length :

5.9 mm

Product Length (mm) :

5.9(mm)

Body Material :

Brass

Termination :

Solder

Mounting Style :

Straight

Insertion Force-Max :

15.1232 N

Impedance :

50 OHM

Termination Method :

Solder

Contact Gender :

FEMALE

Contact Plating :

Gold

Contact Style :

COAX

HTS Code :

8536.69.40.10

Termination Type :

Solder

Reach Compliance Code :

not_compliant

MIL Conformance :

No

DIN Conformance :

No

Body Plating :

Tin

RF Series :

MCX

Mounting Type :

BOARD

Polarity :

Standard

Reliability :

COMMERCIAL

Rad Hardened :

No

Mounting :

Surface Mount

Insulation Material :

Tetrafluoroethylene

Additional Feature :

CAPTIVE CENTER CONTACT

Panel Mount :

No

Characteristic Impedance :

50 Ω

Operating Frequency :

0 to 6

Shell Finish :

Tin

Insulation Resistance :

10000000000 Ω

Type :

MCX

Body Orientation :

Straight

IP Rating :

-

Total Number of Contacts :

1

Product Depth (mm) :

9.5(mm)

Brand Name :

AMP

Orientation :

Straight

Filter Feature :

No

Number of Ports :

1

Packaging :

Box

Product Height (mm) :

6(mm)

Terminate To :

PCB

Operating Frequency-Max :

6 GHz

Body Depth :

0.231 inch

Operating Temp Range :

-65C to 105C

Shell Material :

Brass

Pbfree Code :

yes

Contact Resistance :

5 mΩ

Product :

PCB Receptacles

Coupling Type :

Snap

Termination Style :

Solder

Mounting Option 1 :

LOCKING

Option :

GENERAL PURPOSE
