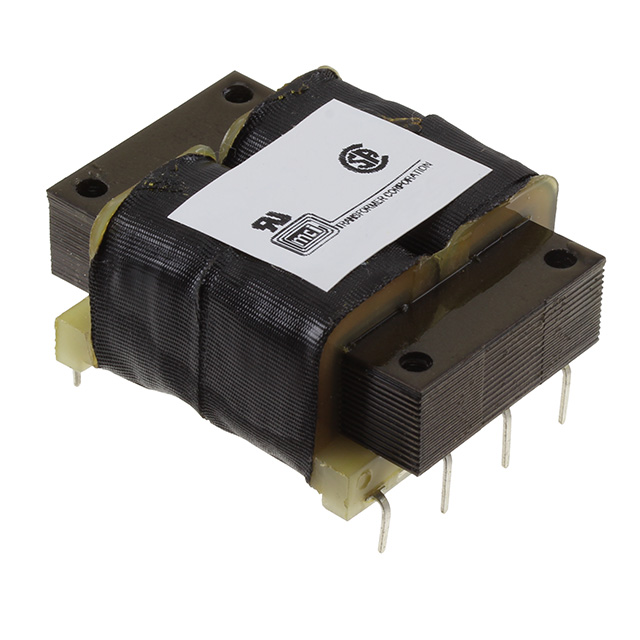

6052R-010

Manufacturer :

API Delevan

Product Category :

Power Transformers

Moisture Sensitivity Level (MSL) :

Not Applicable

Series :

6052R

Factory Lead Time :

13 Weeks

Max Output Current :

1.2A

RoHS Status :

ROHS3 Compliant

Packaging :

Bulk

Physical Dimension :

L47.62XB39.68XH21.59 (mm)

Primary Winding(s) :

Dual

Operating Temperature (Max) :

130°C

Power - Max :

6VA

Voltage - Primary :

115V 230V

Voltage - Isolation :

1500Vrms

ECCN Code :

EAR99

Published :

2010

VA Rating :

6 VA

Terminal Finish :

Tin (Sn)

Number of Secondary Winding :

2

Termination Style :

PC Pin

Type :

Laminated Core

Weight :

0.438lb 198.67g

Approval Agency :

UL; CSA

Pbfree Code :

yes

Size / Dimension :

34.93mm Lx28.58mm W

Height Seated (Max) :

23.80mm

Center Tap :

No

Output Voltage 1 :

5V

Max Power Dissipation :

6W

Current - Output (Max) :

Parallel 1.2A Series 600mA

Termination :

PC Pin

Length :

47.62mm

Width :

39.68mm

Power Rating :

6W

Voltage - Secondary (Full Load) :

Parallel 5V Series 10V

Mounting Type :

Through Hole

JESD-609 Code :

e3

Mount :

Through Hole

Output Voltage 2 :

5V
