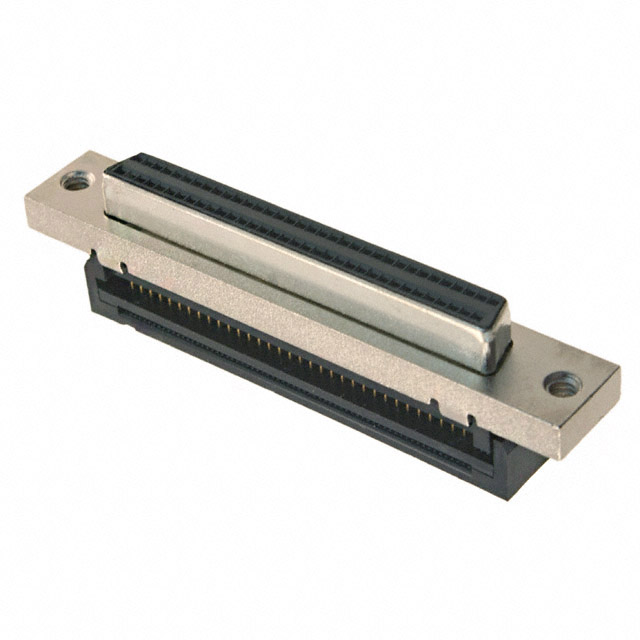

60040685344

Manufacturer :

HARTING

Product Category :

D-Sub Connector Assemblies

Dielectric Material :

Thermoplastic, Glass Filled

ECCN Code :

EAR99

Filter Feature :

No

Pitch :

1.27mm

Number of Rows :

2

Width :

63.88mm

MIL Conformance :

No

IEC Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

HTS Code :

8536.69.40.30

Insulator Color :

Black

Mixed Contacts :

No

Mount :

Cable, Panel

Orientation :

Straight

DIN Conformance :

No

Contact Resistance :

30mOhm

Gender :

Receptacle

Body/Shell Style :

PLUG

Packaging :

Bulk

Body Breadth :

0.404 inch

Length :

63.88mm

Current Rating :

1A

Flange Feature :

Housing/Shell (4-40)

UL Flammability Code :

94V-0

Contact Type :

Signal

Body Plating :

Nickel

Depth :

10.26mm

Series :

har-mik®

REACH SVHC :

No SVHC

Termination :

IDC, Ribbon Cable

Flammability Rating :

UL94 V-0

Feature :

Feed Through

Connector Type :

Receptacle, Female Sockets

Shell Size, Connector Layout :

0.050 Pitch x 0.100 Row to Row

Housing Material :

Thermoplastic

RoHS Status :

RoHS Compliant

Contact Material :

Copper

Reliability :

COMMERCIAL

Voltage - Rated :

240V

Operating Temperature :

-55°C~105°C

Contact Finish - Mating :

NOT SPECIFIED

Option :

GENERAL PURPOSE

Pbfree Code :

yes

Empty Shell :

No

Insulation Resistance :

1GOhm

Number of Ports :

1

Total Number of Contacts :

68

Mounting Type :

Panel Mount

Material :

Resin, Thermoplastic

Reference Standard :

UL

Contact Plating :

Gold

Number of Positions :

68

Connector Style :

D-Type

Rated Current (Signal) :

1A
