6-5177986-4

Share

Or copy the link below:

Mfr.Part #
6-5177986-4
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN PLUG 100POS SMD GOLD
Stock
1,588
In Stock :
1,588

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Arrays, Edge Type, Mezzanine (Board to Board)
Number of Positions :
100
Polarization Key :
ENDS
Total Number of Contacts :
100
Max Voltage Rating (AC) :
100V
Lifecycle Status :
ACTIVE (Last Updated: 2 days ago)
Factory Lead Time :
9 Weeks
Min Operating Temperature :
-40°C
Plating Thickness :
30μin
Contact Current Rating :
500mA
ELV :
Compliant
Row Spacing :
2.4 mm
Housing Material :
Polymer
Rated Current (Signal) :
0.5A
Dielectric Withstanding Voltage :
500VAC V
Contact Gender :
Male
Pitch :
0.031 0.80mm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
DIN Conformance :
No
Insertion Force-Max :
.8896 N
Max Operating Temperature :
125°C
IEC Conformance :
No
Packaging :
Tape and Reel (TR)
Feature :
Board Guide
Contact Style :
Compression
Stack Height (Mating) :
6mm 10mm 14mm 18mm
Contact Material :
Brass
Sealable :
No
Published :
2004
Option :
GENERAL PURPOSE
Length :
45.8mm
Series :
Free Height (FH)
Reference Standard :
UL
Insulation Resistance :
2MOhm
Number Of PCB Rows :
2
Stack Height :
18mm
Contact Finish Thickness :
30.0μin 0.76μm
Height Above Board :
0.230 5.85mm
Contact Resistance :
30mOhm
Filter Feature :
No
Mount :
Surface Mount
Orientation :
Vertical
Operating Supply Voltage :
100V
Number of Conductors :
ONE
Contact Pattern :
RECTANGULAR
Preloaded :
yes
MIL Conformance :
No
Height :
5.9944mm
RoHS Status :
RoHS Compliant
Depth :
6mm
PCB Mount Retention :
Without
Mating Alignment :
With
Contact Finish :
Gold
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Housing Color :
Natural
Termination :
SMD/SMT
Circuit Application :
Signal
Reliability :
COMMERCIAL
PCB Contact Pattern :
RECTANGULAR
Mixed Contacts :
No
Flammability Rating :
UL94 V-0
Contact Finish Thickness - Mating :
760 nm
Mounting Type :
Surface Mount
Pbfree Code :
yes
Number of Rows :
2
Connector Type :
Plug, Center Strip Contacts
Datasheets
6-5177986-4
Introducing Arrays, Edge Type, Mezzanine (Board to Board) TE Connectivity AMP Connectors 6-5177986-4 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Surface Mount, 6-5177986-4 pinout, 6-5177986-4 datasheet PDF, 6-5177986-4 amp .Beyond Arrays, Edge Type, Mezzanine (Board to Board) TE Connectivity AMP Connectors 6-5177986-4 ,we also offer 5054761010, 5035481222, AXT510124, Our vast inventory has you covered. Contact us now for immediate solutions.

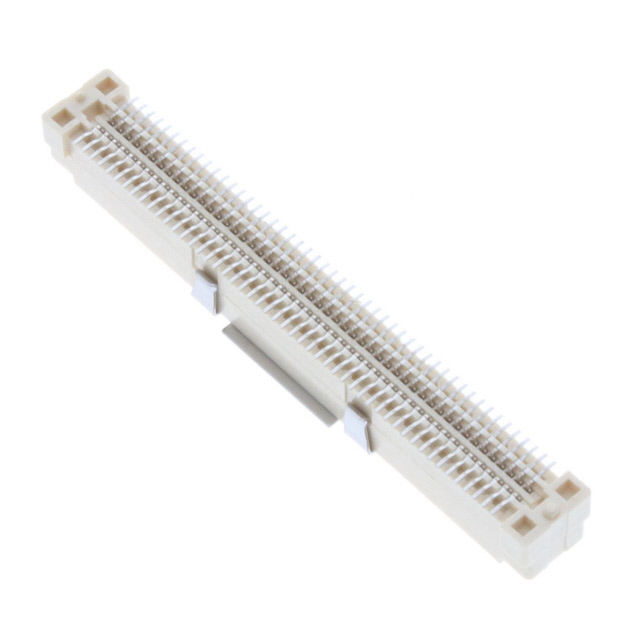

TE Connectivity AMP Connectors 6-5177986-4


Plug, Center Strip Contacts Tape & Reel (TR) 2 Rows 0.031 0.80mm Surface Mount 100 Positions Free Height (FH) Gold SMD/SMT Brass

6-5177986-4 Overview


It comes in Plug, Center Strip Contacts packaging.In order to package the product, a Tape & Reel (TR) case is used.The device's mounting type is Surface Mount.It belongs to the Free Height (FH) Series of products.When operating, it is possible to ensure that Board Guide is maintained.It is necessary to use a Surface Mount socket in order to mount this part.It's best to use it when the temperature is below 125°C.This device must operate at a minimum temperature of -40°C.As this device is suitable for the operation with a 100V supply, it is suitable for use with that supply.

6-5177986-4 Features


Free Height (FH) series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Max Operating temperature at -40°C


6-5177986-4 Applications


There are a lot of TE Connectivity AMP Connectors
6-5177986-4 Rectangular Connectors applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
