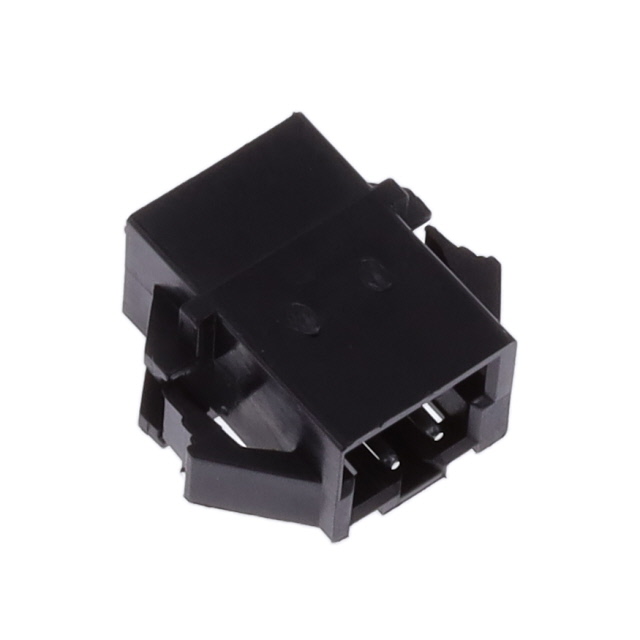

6-292254-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Adapters

Factory Lead Time :

16 Weeks

Operating Supply Voltage :

125V

Convert From (Adapter End) :

Plug, Male Pins

Contact Material :

Brass

Polarization Key :

POLARIZED HOUSING

Shape :

RECTANGULAR

Series :

CT

Wire/Cable Gauge :

22 AWG

Housing Material :

Nylon

Termination Type :

Crimp

Mating Post Length :

4.4958mm

Lead Free :

Not Applicable

Mixed Contacts :

No

Radiation Hardening :

No

IEC Conformance :

No

Reliability :

COMMERCIAL

DIN Conformance :

No

Connector Type :

Header, Pin, Plug

Published :

2010

Width :

5.9944mm

Pbfree Code :

yes

Approval Agency :

CSA

Min Operating Temperature :

-40°C

Housing Color :

Black

MIL Conformance :

No

Wire/Cable Type :

Discrete

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Filter Feature :

No

Wire Size (Min) :

30 AWG

Number of Positions :

2

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Contact Current Rating :

4A

Pitch :

0.079 2.00mm

Height :

11.9888mm

Contact Shape :

Round

Plating Thickness :

40μin

Mounting Type :

Panel Mount, Snap-In

UL Flammability Code :

94V-0

HTS Code :

8536.69.40.40

ELV :

Compliant

ECCN Code :

EAR99

Mount :

Panel

Contact Style :

RND PIN-SKT

Flammability Rating :

UL94 V-0

RoHS Status :

RoHS Compliant

Rated Current (Signal) :

4A

Max Operating Temperature :

105°C

Contact Plating :

Tin

Contact Design :

PREASSEM CONN

Contact Gender :

FEMALE

Option :

GENERAL PURPOSE

Convert To (Adapter End) :

Plug, Male Pins

Length :

7.7724mm

Number of Rows :

1

Total Number of Contacts :

2
