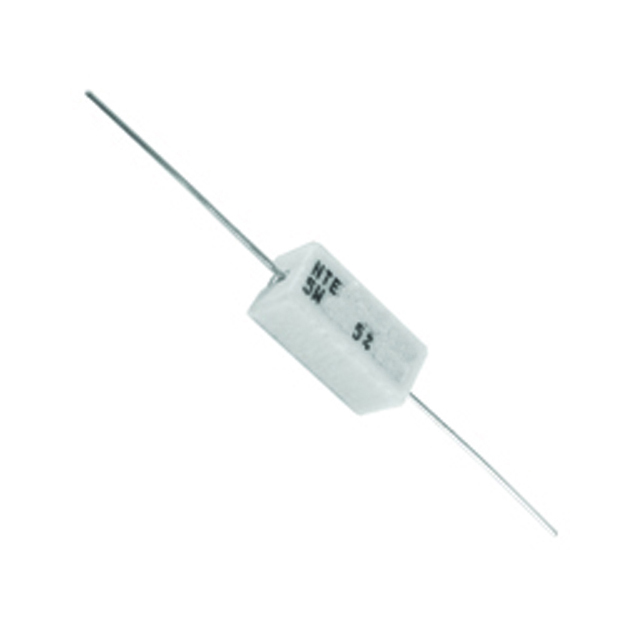

5W2D2

Manufacturer :

NTE Electronics, Inc.

Product Category :

Through Hole Resistors

Terminal Type :

Axial Leads

Package :

Bag

Product Length (mm) :

22

Manufacturer :

NTE Electronics

Lead Length (mm) :

35

Power Rating (W) :

5

Maximum Voltage Rating (V) :

550

Product Depth (mm) :

9.65

Failure Rate :

-

Maximum Operating Temperature (°C) :

155

Package Width :

9.65 mm

Working Voltage :

200 V

Resistance :

2.2 Ohms

Tolerance :

5%

Lead Diameter (mm) :

0.8

Mounting :

Through Hole

Supplier Device Package :

Axial

Size Code :

8738

Wattage :

5

Operating Temperature :

-55°C ~ 155°C

Construction :

Wirewound

Temperature Coefficient :

±300ppm/°C

Height - Seated (Max) :

-

ECCN (US) :

EAR99

Package Shape :

RECTANGULAR

Power (Watts) :

5W

Temperature Coefficient (ppm/°C) :

±300

Features :

-

Size / Dimension :

0.380 Square x 0.866 L (9.65mm x 22.00mm)

Flame-Proof Support :

No

Package Height :

9.65 mm

Minimum Operating Temperature (°C) :

-55

Case Style :

Molded

Rated Power Dissipation (P) :

5 W

Series :

-

Number of Terminals :

2

Lead Length :

1.5

Termination Style :

Axial

Reach Compliance Code :

Unknown

Lead Diameter :

0.036

RoHS Status :

RoHS Compliant

Subcategory :

Fixed Resistors

Number of Terminations :

2

Product Status :

Active

Package Type :

Axial Lead

HTS Code :

8533.21.00.80

Composition :

Wirewound

ECCN Code :

EAR99

Package / Case :

Axial

HTS :

8533.21.00.80

Resistance Value (Ohm) :

2.2

Termination Forming :

Not Formed

Package Length :

22 mm

Product Height (mm) :

9.65

Resistor Type :

FIXED RESISTOR

Fail Safe Fusible Resistor :

No
